Series 9 Integrated Tall Single Dishdrawer™ Dishwasher
SKU: DD24STI9N
Your Price
$999.99
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
Qty: 1
keyboard_arrow_down
Qty: 1
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
23.56" W
×
21.75" D
×
17.88" H
| Width (side to side) | 23.56 |
| Depth (front to back) | 21.75 |
| Height (bottom to top) | 17.88 |
Disclaimer
Description

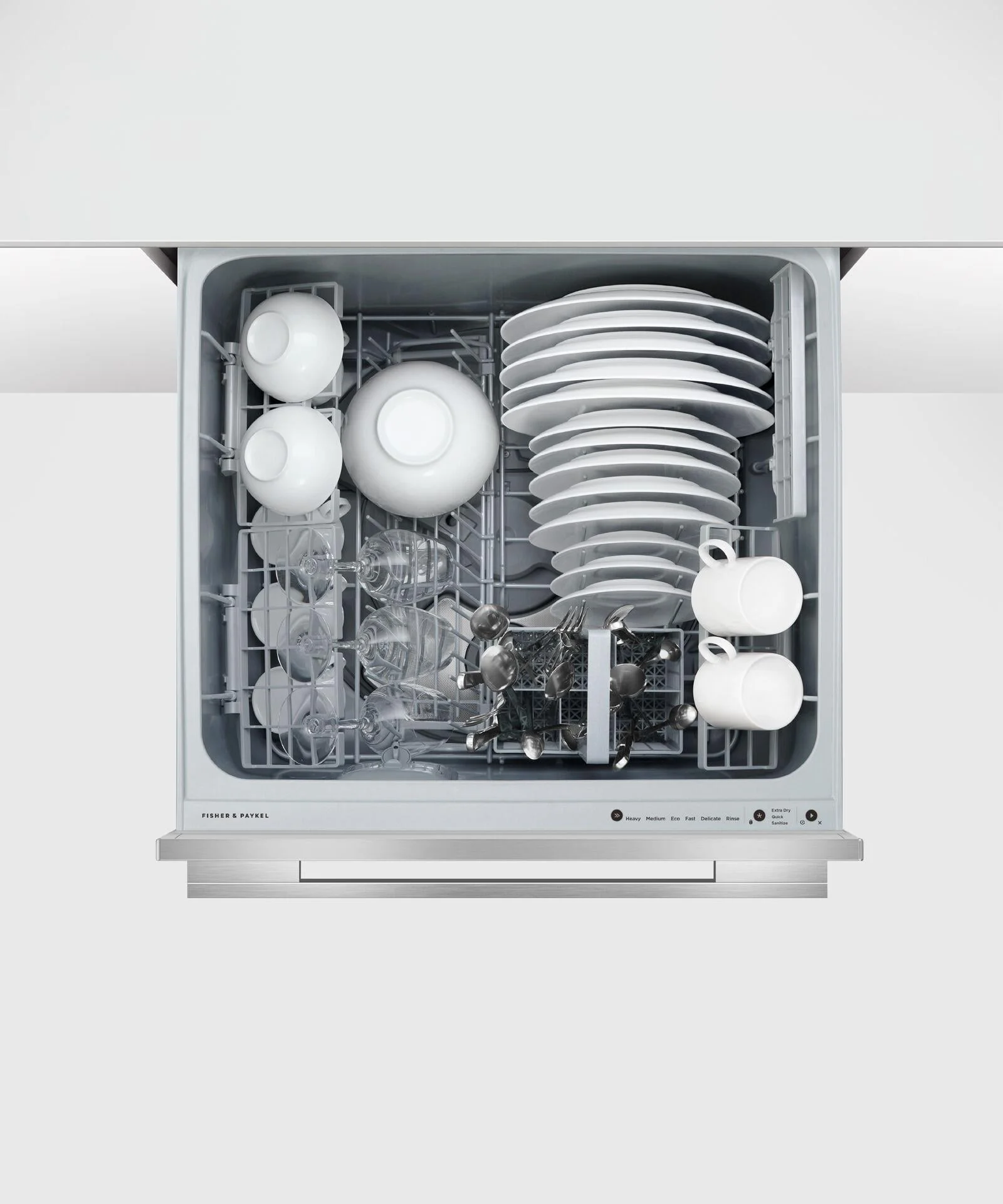

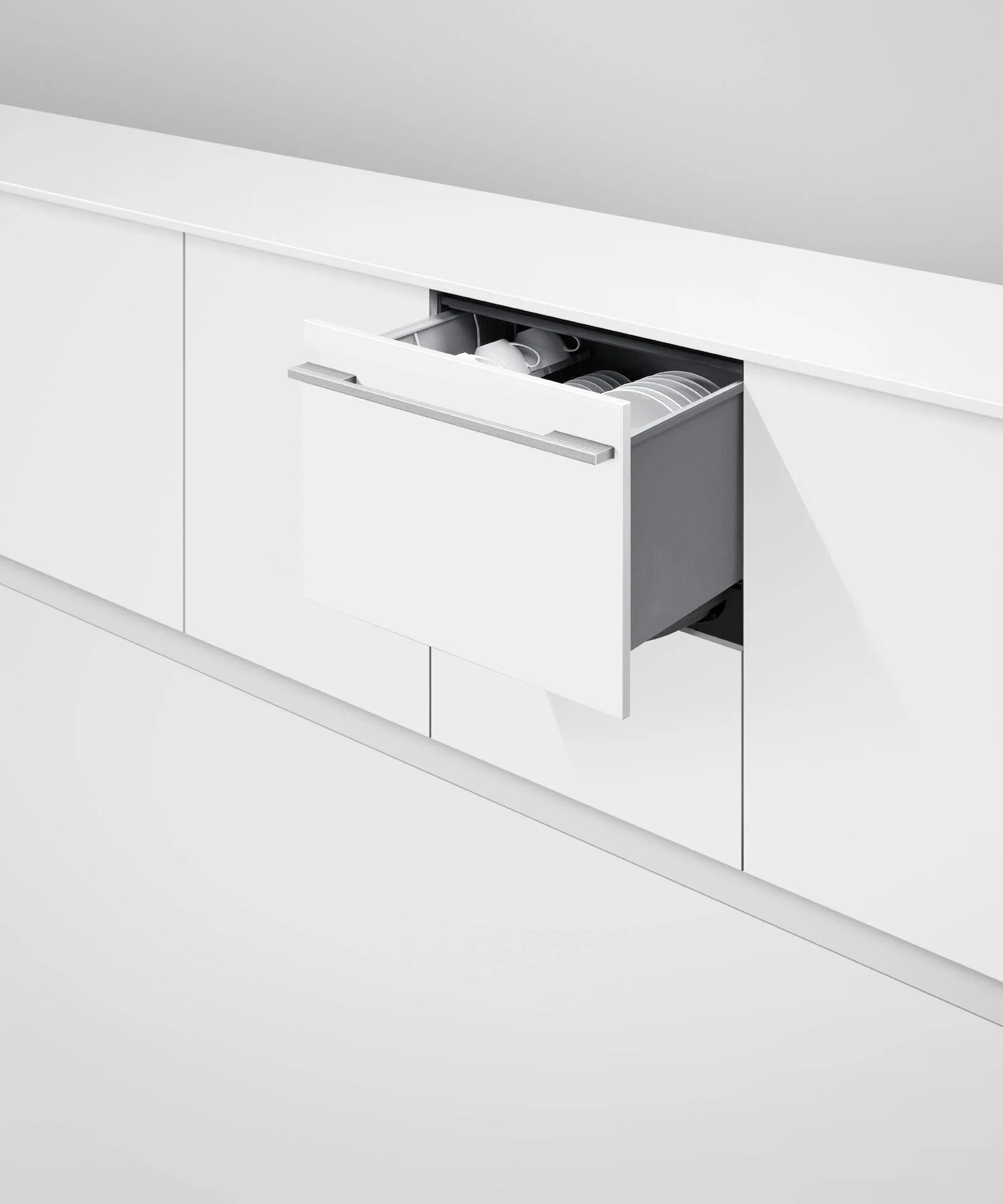

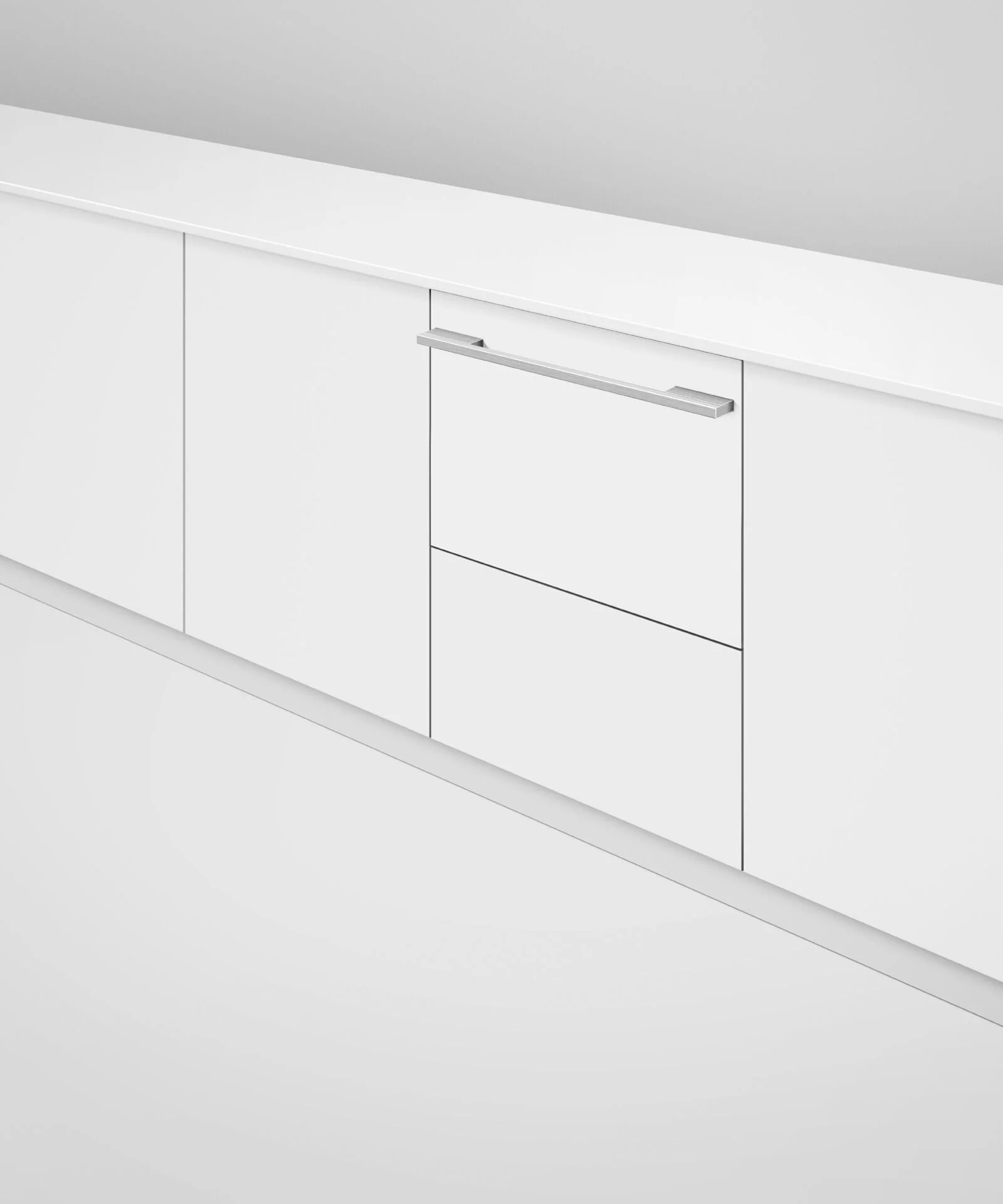

Designed to fit your full-sized dinner plates, this DishDrawer™ can be placed anywhere in your kitchen, integrating seamlessly.
Finish Panel Ready
Finish Panel Ready
- American Disabilities Act (ADA) compliant, this can be installed at an accessible height for loading and unloading
- Six wash programs, as well as additional Quick wash, Sanitize and Extra Dry options

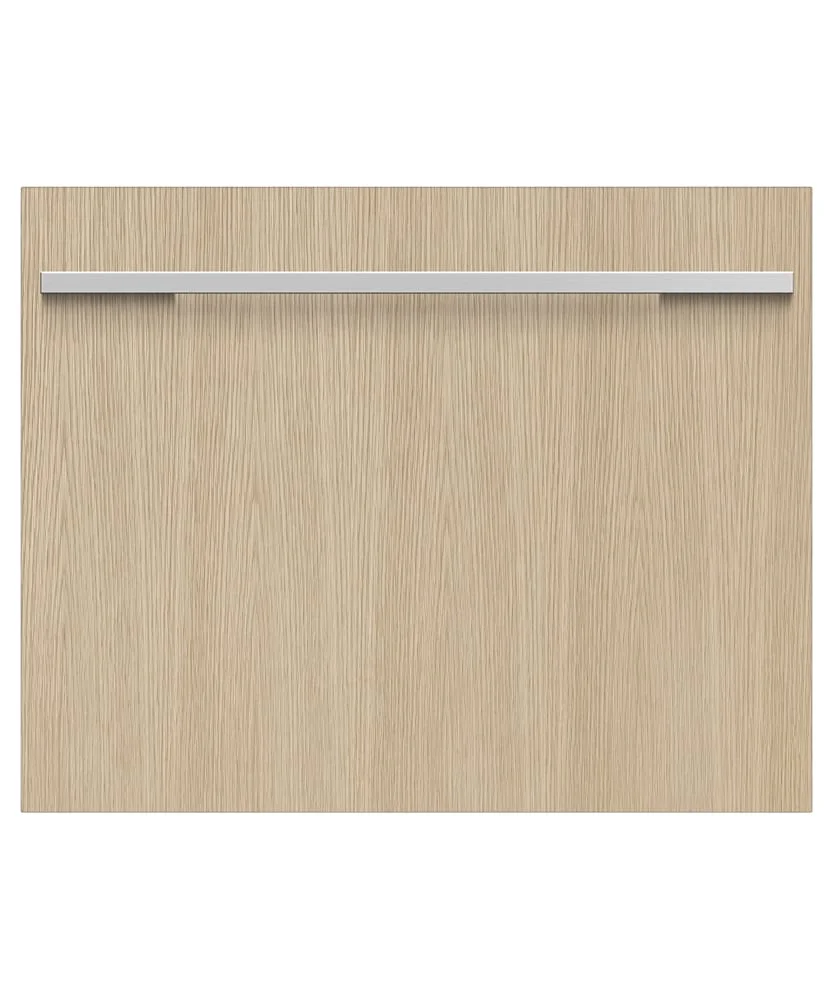

- Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory
- Knock to pause function is perfect if you miss a dish
Rebates
view available rebates
Specifications
Specifications
Product
Tall Tub Design
Yes
Tall Tub Design
- Yes
Sabbath Mode
No
Sabbath Mode
- No
Wifi Enabled
No
Wifi Enabled
- No
Dishwasher Sound Rating
Quiet (40-49dB)
Dishwasher Sound Rating
- Quiet (40-49dB)
Install Type
Built-In
Install Type
- Built-In
ADA Compliant
Yes
ADA Compliant
- Yes
Energy Star Compliant
Yes
Energy Star Compliant
- Yes
Dimensions
Height (bottom to top)
17.88" H
Height (bottom to top)
- 17.88" H
Width (side to side)
23.56" W
Width (side to side)
- 23.56" W
Depth (front to back)
21.75" D
Depth (front to back)
- 21.75" D
Features & Function
Oven Features
ADA Compliant
Oven Features
- ADA Compliant
Dishwasher Features
Energy Star Compliant, ADA Compliant
Dishwasher Features
- Energy Star Compliant
- ADA Compliant
Handle Type
Handle
Handle Type
- Handle
Maximum Spin Speed (RPM)
-1.0
Maximum Spin Speed (RPM)
- -1.0
Control Location
Top
Control Location
- Top
Decibel Sound Rating
43
Decibel Sound Rating
- 43
Style Elements
Color Family
Natural
Color Family
- Natural
Color Name
Custom Panel Ready
Color Name
- Custom Panel Ready
Accessories (sold separately)
Door panel stainless steel
ADDD24STPX
Door panel stainless steel
- ADDD24STPX
Handle kit Classic
AHCL-DDDW-24X
Handle kit Classic
- AHCL-DDDW-24X
Handle kit Contemporary round, aluminium
AHS-OBDD-60S
Handle kit Contemporary round, aluminium
- AHS-OBDD-60S
Handle kit Contemporary square fine, aluminium
AHD5-OBDD-60SX
Handle kit Contemporary square fine, aluminium
- AHD5-OBDD-60SX
Handle kit Contemporary square fine, black
AHD5-OBDD-60SB
Handle kit Contemporary square fine, black
- AHD5-OBDD-60SB
Handle kit Contemporary square, aluminium
AHD3-OBDD-60S
Handle kit Contemporary square, aluminium
- AHD3-OBDD-60S
Handle kit Professional round flush
AHP3-DWDD-SX
Handle kit Professional round flush
- AHP3-DWDD-SX
Handle kit Professional round flush, Brass off-stands
AHP3DDDW24BA
Handle kit Professional round flush, Brass off-stands
- AHP3DDDW24BA
Handle kit Professional round flush, Dark Copper off-stands
AHP3DDDW24DC
Handle kit Professional round flush, Dark Copper off-stands
- AHP3DDDW24DC
Capacity and loading
Accommodates round plates up to
12.25 "
Accommodates round plates up to
- 12.25 "
Place settings
7
Place settings
- 7
Consumption
Energy rating
Energy star
Energy rating
- Energy star
Energy usage
144kWh/year
Energy usage
- 144kWh/year
In-use energy carbon emissions estimate Carbon Emissions Info
52.8kgCO2e/year
In-use energy carbon emissions estimate Carbon Emissions Info
- 52.8kgCO2e/year
Water usage (per wash cycle)
1.64 gal
Water usage (per wash cycle)
- 1.64 gal
Performance
Noise emissions
43dBA
Noise emissions
- 43dBA
Power requirements
Amperage
5A
Amperage
- 5A
Electric circuit
3 wire
Electric circuit
- 3 wire
Rated current
15A
Rated current
- 15A
Supply frequency
60Hz
Supply frequency
- 60Hz
Supply voltage
100 - 120V
Supply voltage
- 100 - 120V
Product dimensions
Depth
21 3 / 4 "
Depth
- 21 3 / 4 "
Height
17 7 / 8 "
Height
- 17 7 / 8 "
Width
23 9 / 16 "
Width
- 23 9 / 16 "
Warranty
Parts and labor
Limited 2 years
Parts and labor
- Limited 2 years
Wash Program Modifiers
Wash modifiers
3
Wash modifiers
- 3
Wash Programs
Wash programs
6
Wash programs
- 6
Water connection
Inlet water temperature
Max 140'F
Inlet water temperature
- Max 140'F
Water pressure
30kPa - 1000 kPa
Water pressure
- 30kPa - 1000 kPa
Water supply
3 / 8 " to suit Male Compression Fitting
Water supply
- 3 / 8 " to suit Male Compression Fitting
Features
American Disabilities Act (ADA) compliant, this can be installed at an accessible height for loading and unloading, Six wash programs, as well as additional Quick wash, Sanitize and Extra Dry options, Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory, Knock to pause function is perfect if you miss a dish
- American Disabilities Act (ADA) compliant, this can be installed at an accessible height for loading and unloading
- Six wash programs, as well as additional Quick wash, Sanitize and Extra Dry options
- Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory
- Knock to pause function is perfect if you miss a dish
Item & Dimensions
Manufacturer
Fisher and Paykel
Manufacturer
- Fisher and Paykel
The Dishwashers Series 9 Integrated Tall Single Dishdrawer™ Dishwasher, made by Fisher and Paykel,
is brought to you by Sherman's. Sherman's is a local furniture store, serving the Peoria, Normal, and Peru, IL area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Dishwashers collection is an amazing option if you are looking for
Appliances.
Our store serves the Peoria, Normal, and Peru, IL area.
Similar search terms: Dishwasher, Portable Dishwasher, Built In Dishwasher, Dish Drawer, Compact Dishwasher, Large Dishwasher, Kitchen Appliances
Reference #: DD24STI9N
