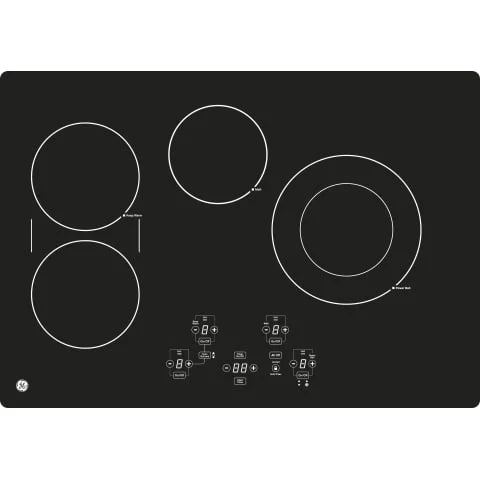

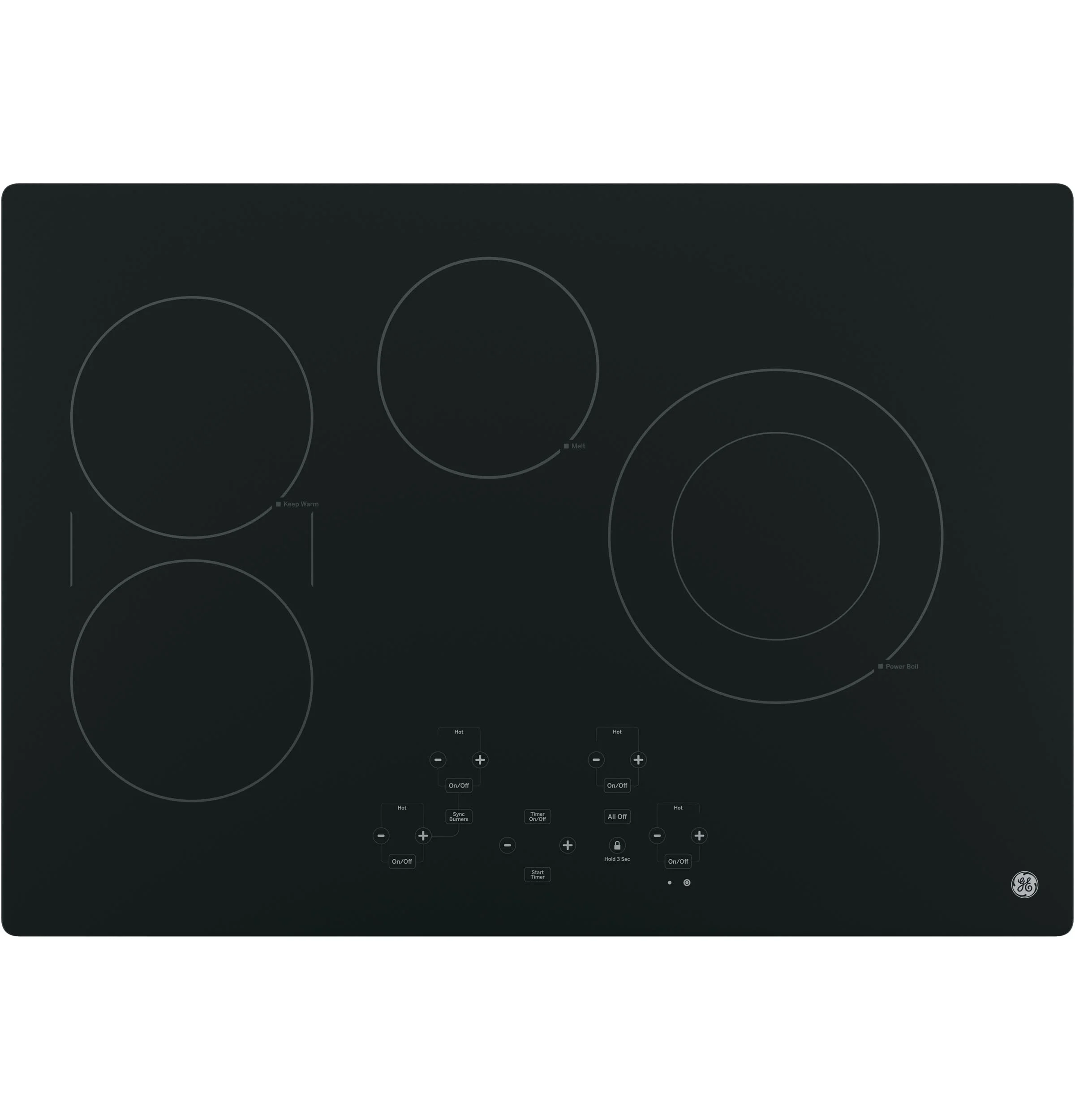

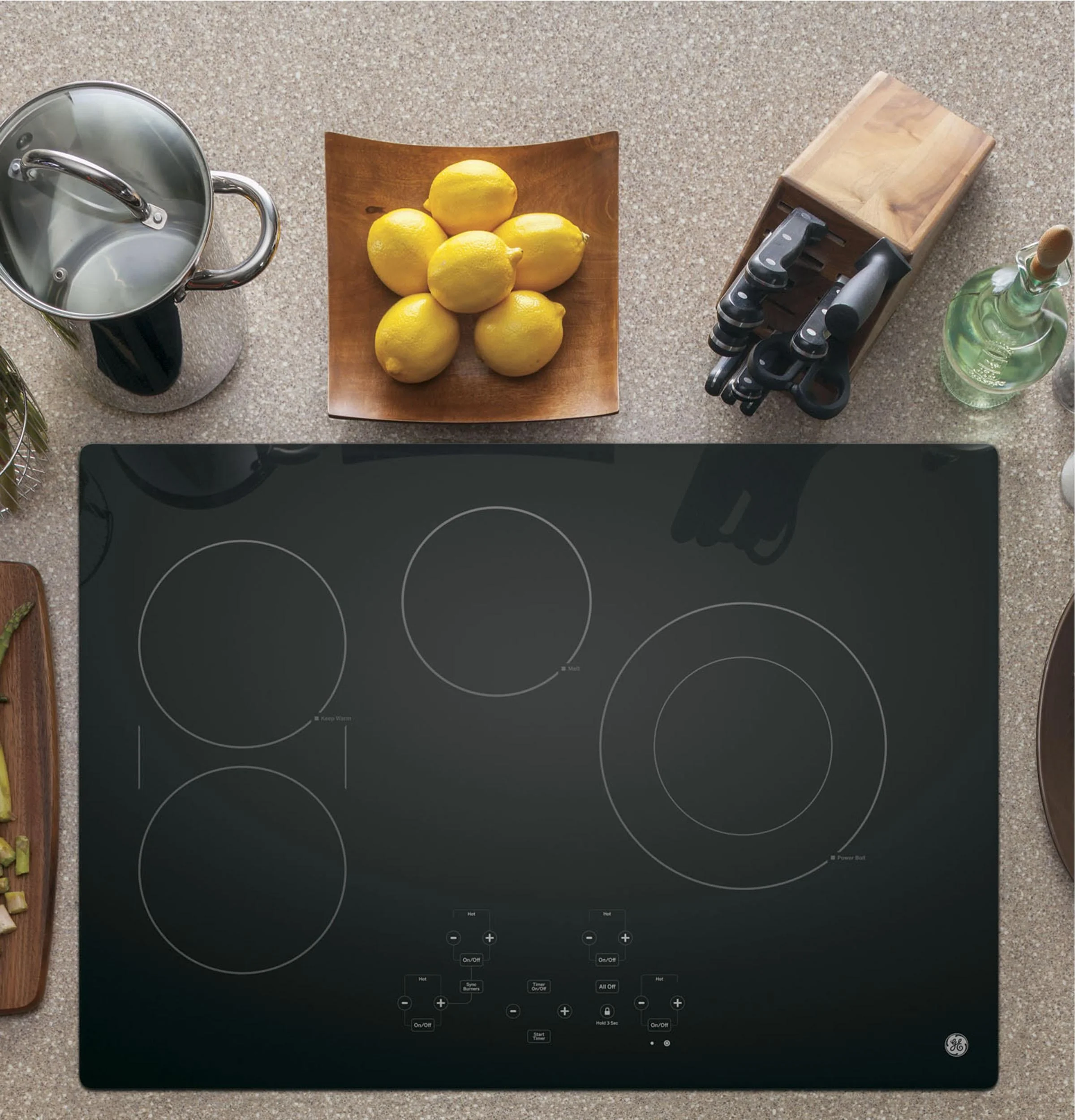

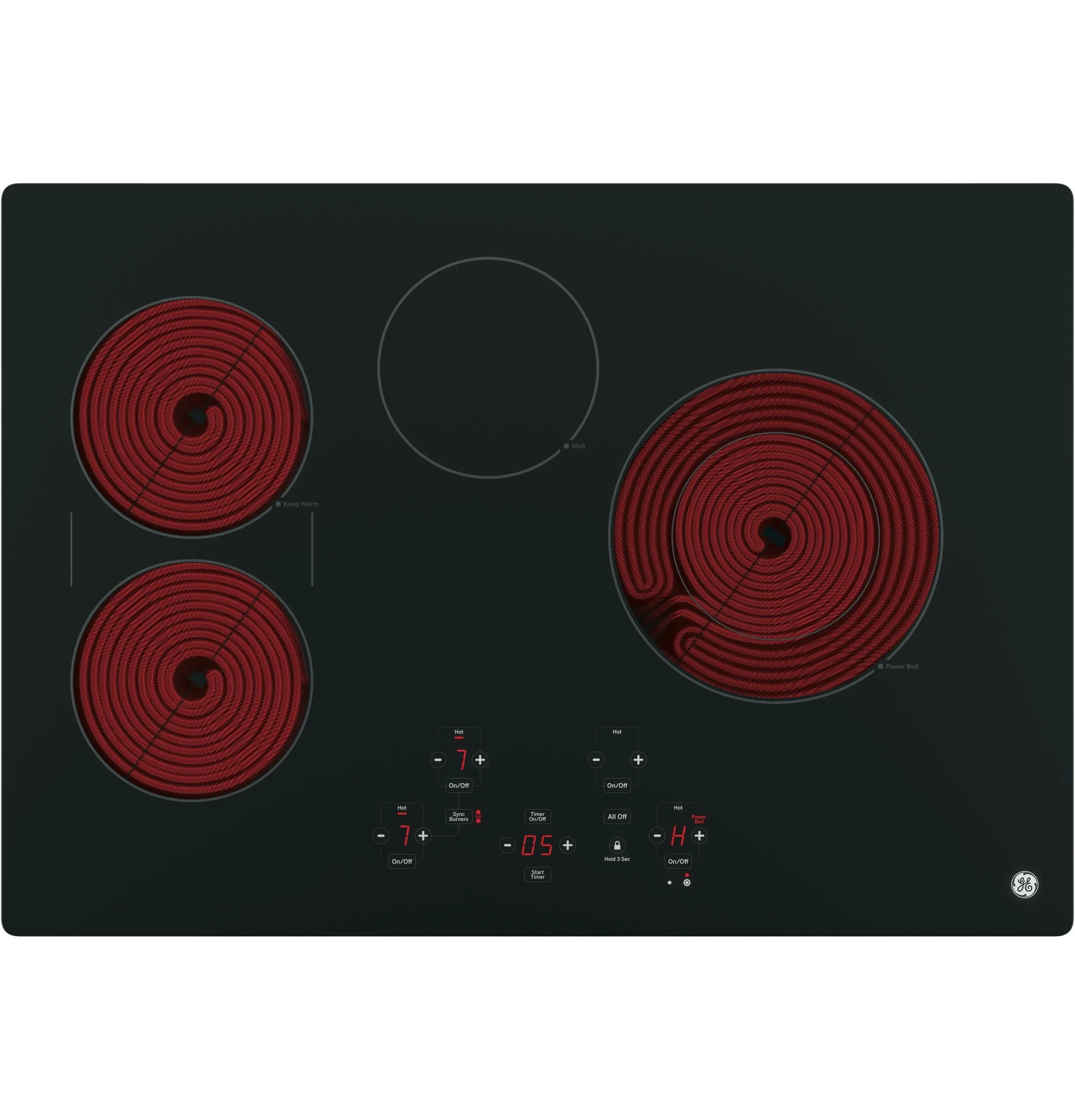

Ge® 30" Built-In Touch Control Electric Cooktop
SKU: JP5030DJBB
Your Price
$1,332.99
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
Qty: 1
keyboard_arrow_down
Qty: 1
Price with selected options:
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
29.75" W
×
20.875" D
×
5.5625" H
| Width (side to side) | 29.75 |
| Depth (front to back) | 20.875 |
| Height (bottom to top) | 5.5625 |
| Weight (with stand) | 46 |
Disclaimer
Description
Four radiant cooking elements
Cook foods quickly and evenly on this sleek, glass surface
Digital Touch Controls
Accurately control your heating on a surface that's easy to clean
Power Boil Dual-Ring Element
Use different pan sizes on this powerful 3,100-watt flexible element that produces concentrated heat for rapid boiling
SyncBurners
Evenly heat large cookware (griddles) with two 7" synchronized elements you can control with the touch of a button
Kitchen timer
Helps coordinate meal preparation and cooking
Keep Warm Setting
A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting
Melt Setting
Gently melt delicate foods without scorching thanks to a convenient melt setting
Control lock capability
Protects against unintended activation
Red LED with Black Glass Surface
Achieve a modern look that complements the entire kitchen
Hot surface indicator lights
Know when elements are too hot to touch with a quick glance

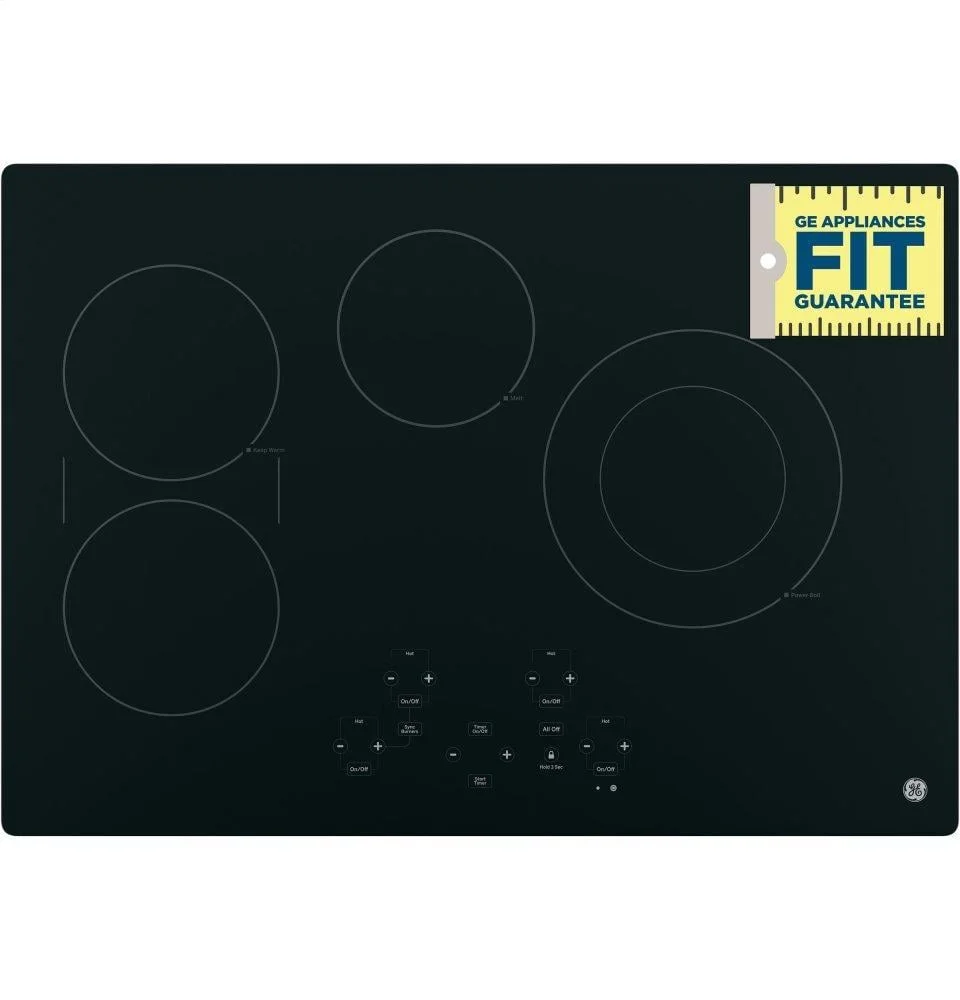

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
Cook foods quickly and evenly on this sleek, glass surface
Digital Touch Controls
Accurately control your heating on a surface that's easy to clean
Power Boil Dual-Ring Element
Use different pan sizes on this powerful 3,100-watt flexible element that produces concentrated heat for rapid boiling
SyncBurners
Evenly heat large cookware (griddles) with two 7" synchronized elements you can control with the touch of a button
Kitchen timer
Helps coordinate meal preparation and cooking
Keep Warm Setting
A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting
Melt Setting
Gently melt delicate foods without scorching thanks to a convenient melt setting
Control lock capability
Protects against unintended activation
Red LED with Black Glass Surface
Achieve a modern look that complements the entire kitchen
Hot surface indicator lights
Know when elements are too hot to touch with a quick glance
Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
- SyncBurners
- Control lock capability
- Digital Touch Controls
- Red LED with Black Glass Surface
- Hot surface indicator lights
- Power Boil Dual-Ring Element
- Kitchen timer
- Four radiant cooking elements
- Keep Warm Setting
- Melt Setting
Rebates
view available rebates
Specifications
Specifications
Product
Sabbath Mode
No
Sabbath Mode
- No
Wifi Enabled
No
Wifi Enabled
- No
Appliance Fuel Type
Electric
Appliance Fuel Type
- Electric
Appliance Color
Black
Appliance Color
- Black
Induction
No
Induction
- No
ADA Compliant
Yes
ADA Compliant
- Yes
Energy Star Compliant
No
Energy Star Compliant
- No
Features & Function
Number of Burners
4
Number of Burners
- 4
Oven Features
ADA Compliant
Oven Features
- ADA Compliant
Maximum Spin Speed (RPM)
-1.0
Maximum Spin Speed (RPM)
- -1.0
Style Elements
Color Family
Black
Color Family
- Black
Color Name
Black
Color Name
- Black
FILTER
App Filter - Cabinet Width
Cooking 30 in. (Standard)
App Filter - Cabinet Width
- Cooking 30 in. (Standard)
App Filter - Cooktop Type
Radiant Smoothtop
App Filter - Cooktop Type
- Radiant Smoothtop
App Filter - Fuel Type
Electric
App Filter - Fuel Type
- Electric
App Filter - SyncBurners
Yes
App Filter - SyncBurners
- Yes
App Filter - Control Type
Digital touch
App Filter - Control Type
- Digital touch
APPEARANCE
Frame Color / Material
Stainless Steel
Frame Color / Material
- Stainless Steel
Color Appearance
Black
Color Appearance
- Black
Frameless
Yes
Frameless
- Yes
POWER / RATINGS
Recommended Circuit Breaker (Amps) at 240V
40
Recommended Circuit Breaker (Amps) at 240V
- 40
Max. Connected Load (kW) at 240V
7.3
Max. Connected Load (kW) at 240V
- 7.3
Max. Current Draw (Amps) at 240V
30.4
Max. Current Draw (Amps) at 240V
- 30.4
Max. Connected Load (kW) at 208V
5.5
Max. Connected Load (kW) at 208V
- 5.5
Recommended Circuit Breaker (Amps) at 208V
30
Recommended Circuit Breaker (Amps) at 208V
- 30
Max. Current Draw (Amps) at 208V
26.4
Max. Current Draw (Amps) at 208V
- 26.4
WARRANTY
Parts Warranty
Limited 1-year entire appliance
Parts Warranty
- Limited 1-year entire appliance
Warranty Notes
See written warranty for full details
Warranty Notes
- See written warranty for full details
Labor Warranty
Limited 1-year entire appliance
Labor Warranty
- Limited 1-year entire appliance
WEIGHTS & DIMENSIONS
Cooktop Size
30 in
Cooktop Size
- 30 in
Overall Height
5.5625 in
Overall Height
- 5.5625 in
Cutout Depth (in)
19-5/8
Cutout Depth (in)
- 19-5/8
Cabinet Width
30 in
Cabinet Width
- 30 in
Approximate Shipping Weight
44 lb
Approximate Shipping Weight
- 44 lb
Overall Width
29.75 in
Overall Width
- 29.75 in
Net Weight
38 lb
Net Weight
- 38 lb
Cutout Width (in)
28-1/2
Cutout Width (in)
- 28-1/2
Overall Depth
20.875 in
Overall Depth
- 20.875 in
FEATURES
Filler trim kit
JXTR32B (not included)
Filler trim kit
- JXTR32B (not included)
Cooktop Burner Type
4 Ribbon
Smoothtop
Cooktop Burner Type
- 4 Ribbon Smoothtop
Melt Setting
Yes
Melt Setting
- Yes
Fuel Type
Electric
Fuel Type
- Electric
Element - Left Front
7" 1500W
Element - Left Front
- 7" 1500W
Indicator Lights
4 Hot Surface
Red
Setting Level Indicators
Surface Element "ON"
Indicator Lights
- 4 Hot Surface Red Setting Level Indicators Surface Element "ON"
Element - Right Front
9"/6" 3100W Power Boil
Element - Right Front
- 9"/6" 3100W Power Boil
Control Location
Front Center
Control Location
- Front Center
Cooktop Type
Radiant Smoothtop
Cooktop Type
- Radiant Smoothtop
Cooktop Surface
Black Ceramic Glass
Cooktop Surface
- Black Ceramic Glass
Cooktop Control Features
All-Off Control
Control Lock Capability
Keep-Warm Setting
Kitchen timer
Melt Setting
Sync-Burners Capability
Cooktop Control Features
- All-Off Control Control Lock Capability Keep-Warm Setting Kitchen timer Melt Setting Sync-Burners Capability
Timer
Yes
Timer
- Yes
Element - Left Rear
7" 1500W
Element - Left Rear
- 7" 1500W
Control Type
Electronic Touch
Control Type
- Electronic Touch
Element - Right Rear
6" 1200W
Element - Right Rear
- 6" 1200W
Features
SyncBurners, Control lock capability, Digital Touch Controls, Red LED with Black Glass Surface, Hot surface indicator lights, Power Boil Dual-Ring Element, Kitchen timer, Four radiant cooking elements, Keep Warm Setting, Melt Setting
- SyncBurners
- Control lock capability
- Digital Touch Controls
- Red LED with Black Glass Surface
- Hot surface indicator lights
- Power Boil Dual-Ring Element
- Kitchen timer
- Four radiant cooking elements
- Keep Warm Setting
- Melt Setting
Dimensions
Height (bottom to top)
5.5625" H
Height (bottom to top)
- 5.5625" H
Width (side to side)
29.75" W
Width (side to side)
- 29.75" W
Depth (front to back)
20.875" D
Depth (front to back)
- 20.875" D
Weight (with stand)
46lbs
Weight (with stand)
- 46lbs
Burner Type
Smooth Top/Radiant
Burner Type
- Smooth Top/Radiant
Control Location
Front Center
Control Location
- Front Center
Front Left Burner
7" 1500W
Front Left Burner
- 7" 1500W
Simmer/Warming Burner
Yes
Simmer/Warming Burner
- Yes
Power Source
Electric
Power Source
- Electric
Surface Type
Glass
Surface Type
- Glass
Rear Right Burner
6" 1200W
Rear Right Burner
- 6" 1200W
Rear Left Burner
7" 1500W
Rear Left Burner
- 7" 1500W
Hot Surface Indicator
Yes
Hot Surface Indicator
- Yes
Child Lock
Yes
Child Lock
- Yes
Expandable Burner
Yes
Expandable Burner
- Yes
Control Type
Digital Touch
Control Type
- Digital Touch
Surface Element 'ON' Indicator Light
Yes
Surface Element 'ON' Indicator Light
- Yes
ADA Compliant
Yes
ADA Compliant
- Yes
Front Right Burner
9"/6" 3100W Power Boil
Front Right Burner
- 9"/6" 3100W Power Boil
Item & Dimensions
Manufacturer
GE Appliances, GE Appliances
Manufacturer
- GE Appliances
- GE Appliances
The Electric Ranges Ge® 30" Built-In Touch Control Electric Cooktop, made by GE Appliances,
is brought to you by Sherman's. Sherman's is a local furniture store, serving the Peoria, Normal, and Peru, IL area. Product availability may vary.
Contact us for the most current availability on this product.
