lessDimensions:
30.0" W
×
21.0" D
×
3.25" H
| Width (side to side) | 30.0 |
| Depth (front to back) | 21.0 |
| Height (bottom to top) | 3.25 |
Disclaimer
Description

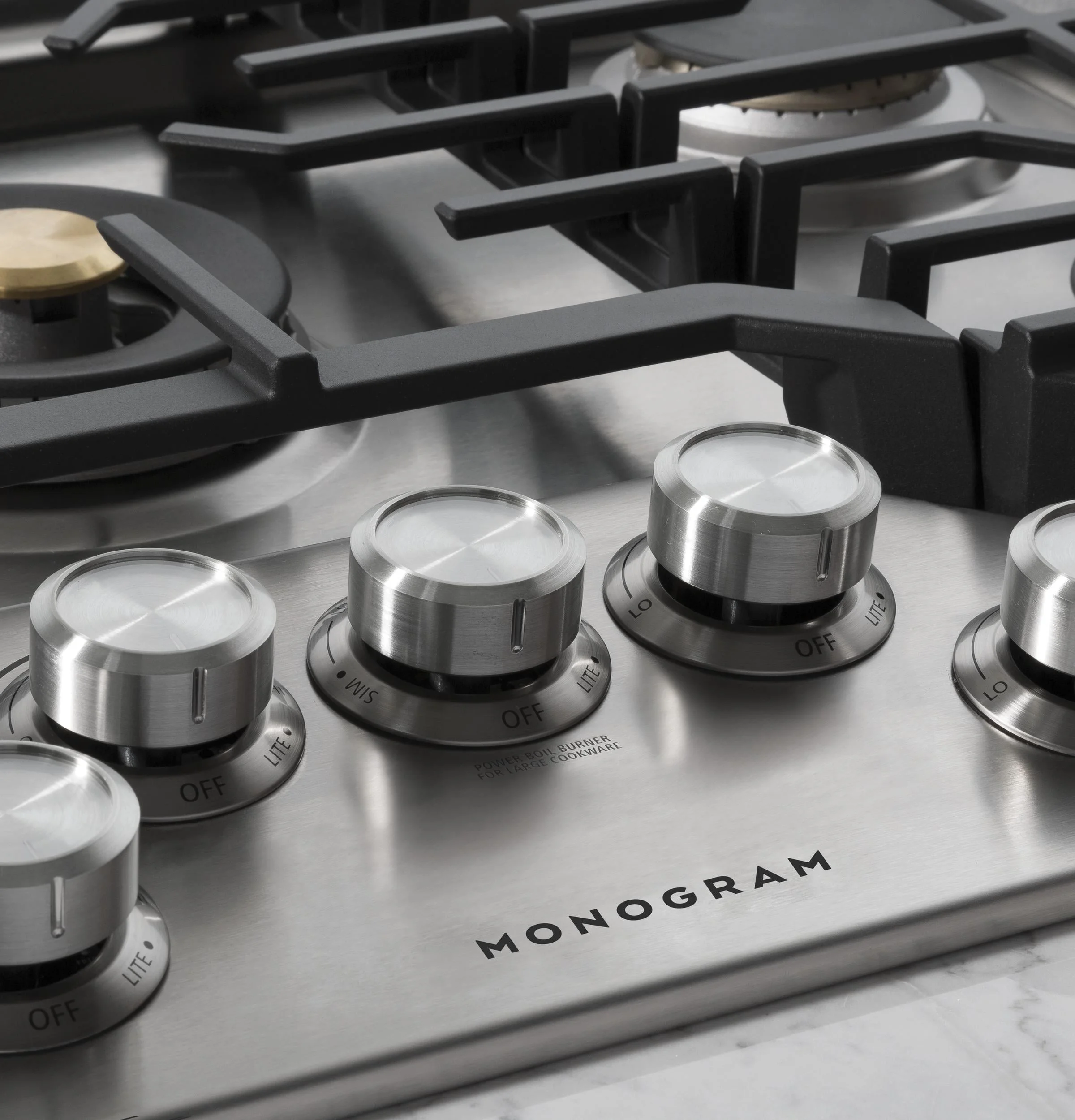

Precision knobs
With embedded sapphire glass illuminate each knob making it easy to view and select heat settings

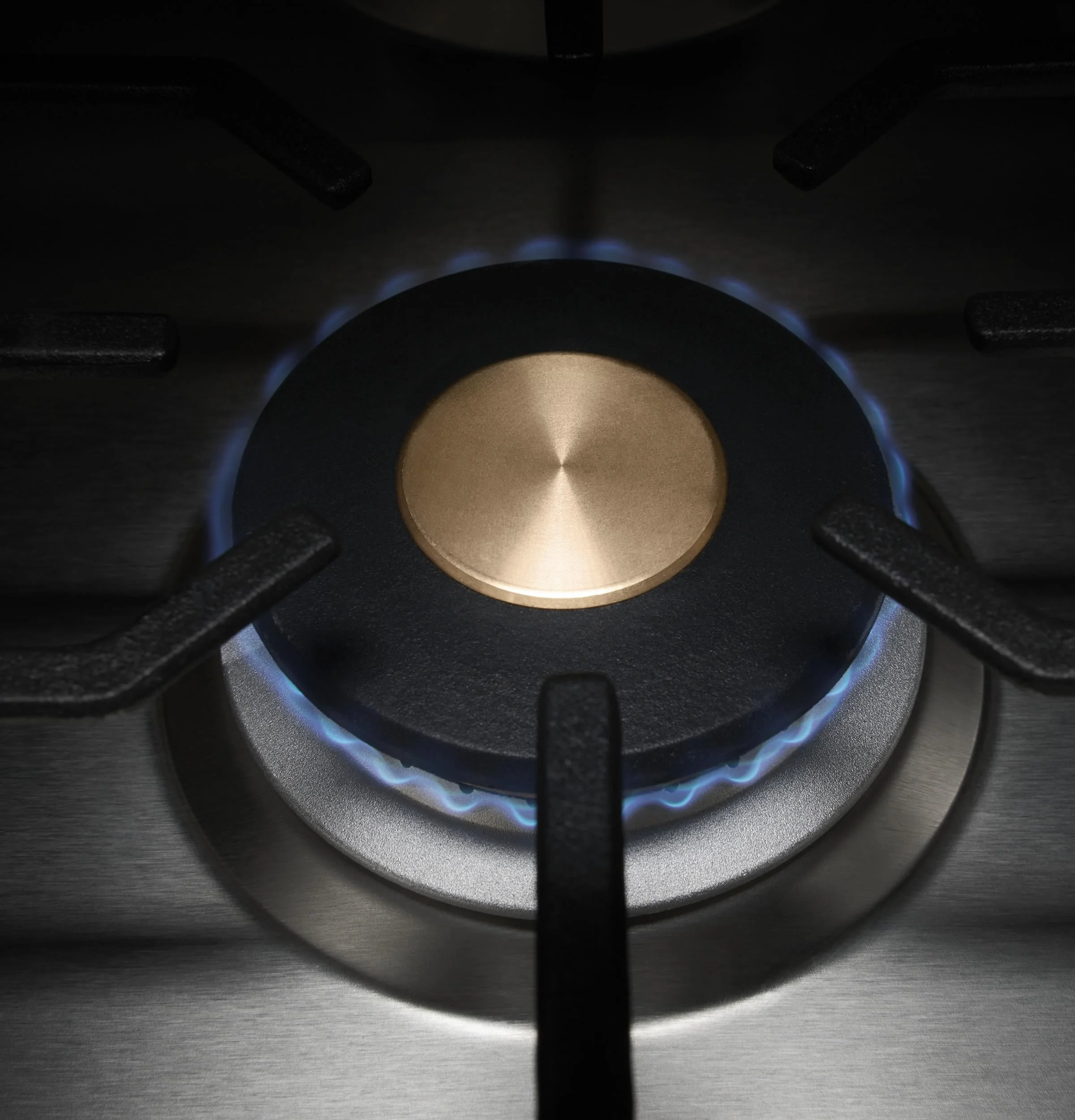

Dual-flame stacked burners
Provide complete 140F simmer-to-rapid-boil flexibility on all burners; the burners are sealed to the cooktop for easy cleaning
High-output cooking
Delivered by a 20,000 BTU tri-ring burner, total of 62,000 BTUs

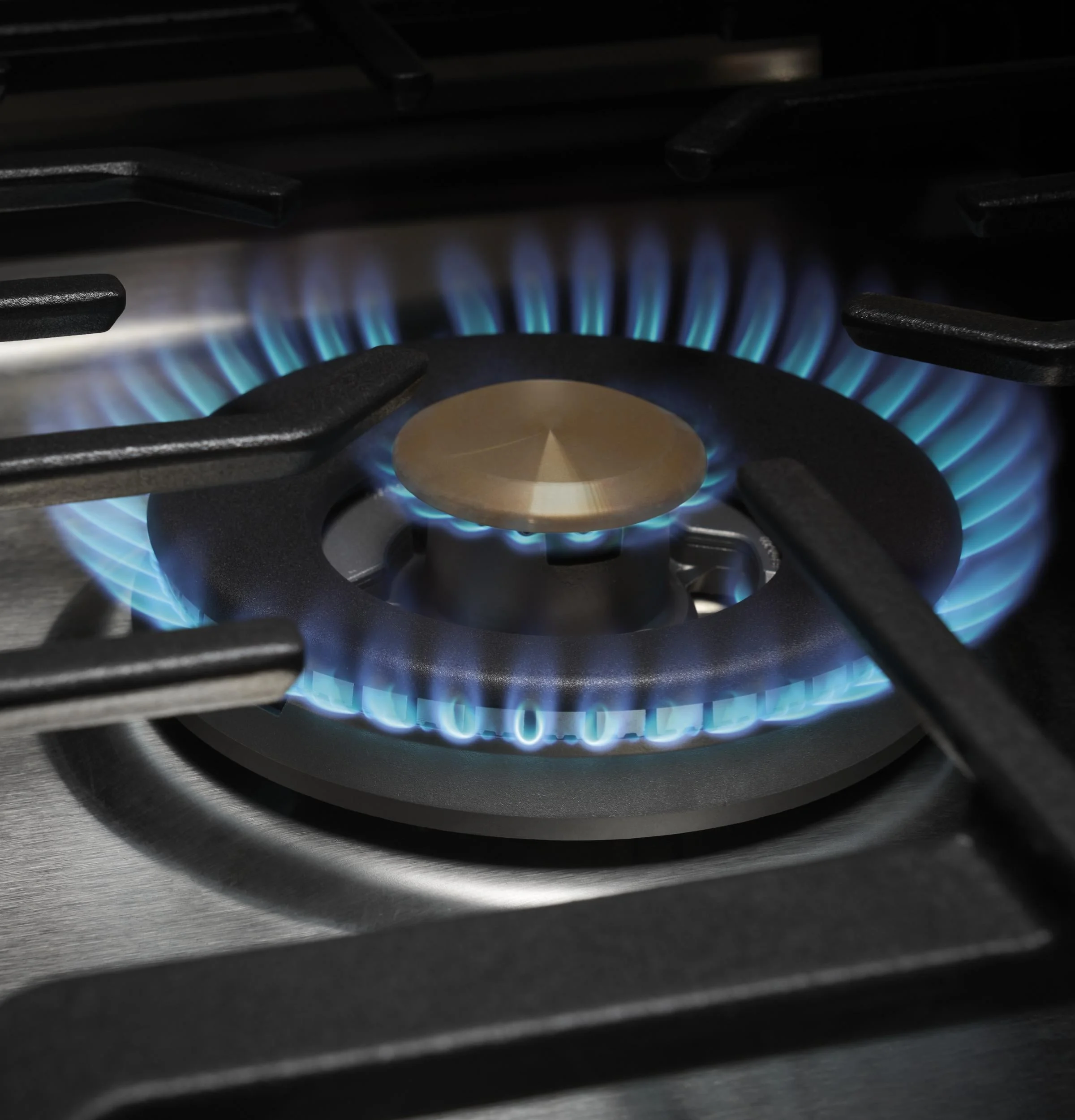

Tri-ring burner
Versatile burner creates 20,000 BTUs of intense heat, perfect for searing, frying and sautéing
Continuous grates
Designed for even cooking and simple movement of cookware across the surface
Electronic ignition
Ensures a continuous flame and reignites automatically if accidentally extinguished

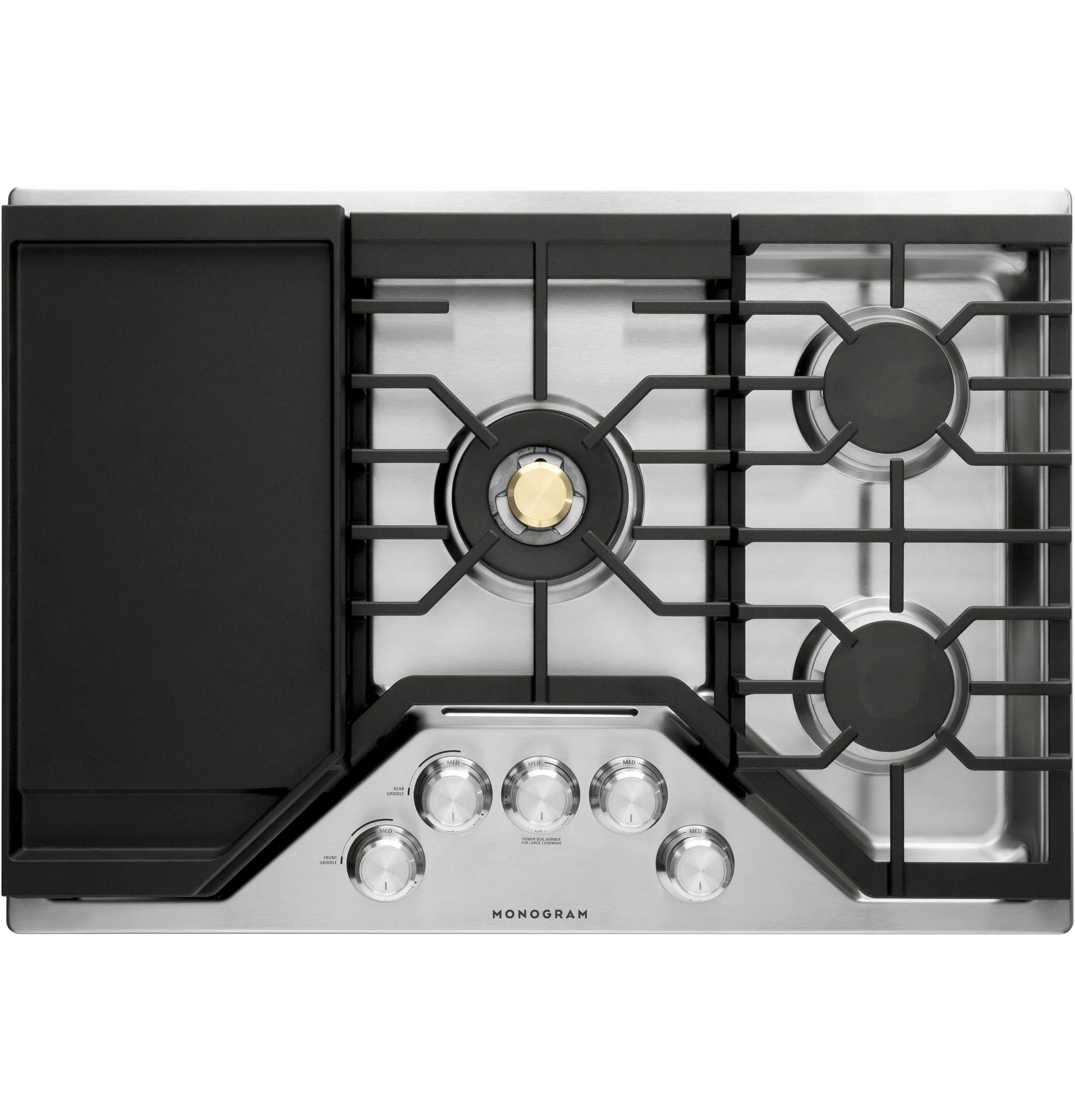

Heavy-duty, cast-iron griddle
Designed to fit the Monogram gas cooktop
With embedded sapphire glass illuminate each knob making it easy to view and select heat settings
Dual-flame stacked burners
Provide complete 140F simmer-to-rapid-boil flexibility on all burners; the burners are sealed to the cooktop for easy cleaning
High-output cooking
Delivered by a 20,000 BTU tri-ring burner, total of 62,000 BTUs
Tri-ring burner
Versatile burner creates 20,000 BTUs of intense heat, perfect for searing, frying and sautéing
Continuous grates
Designed for even cooking and simple movement of cookware across the surface
Electronic ignition
Ensures a continuous flame and reignites automatically if accidentally extinguished
Heavy-duty, cast-iron griddle
Designed to fit the Monogram gas cooktop
- Tri-ring burner
- Dual-flame stacked burners
- High-output cooking
- Continuous grates
- Precision knobs
- Electronic ignition
- Heavy-duty, cast-iron griddle
Rebates
view available rebates

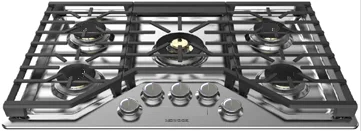

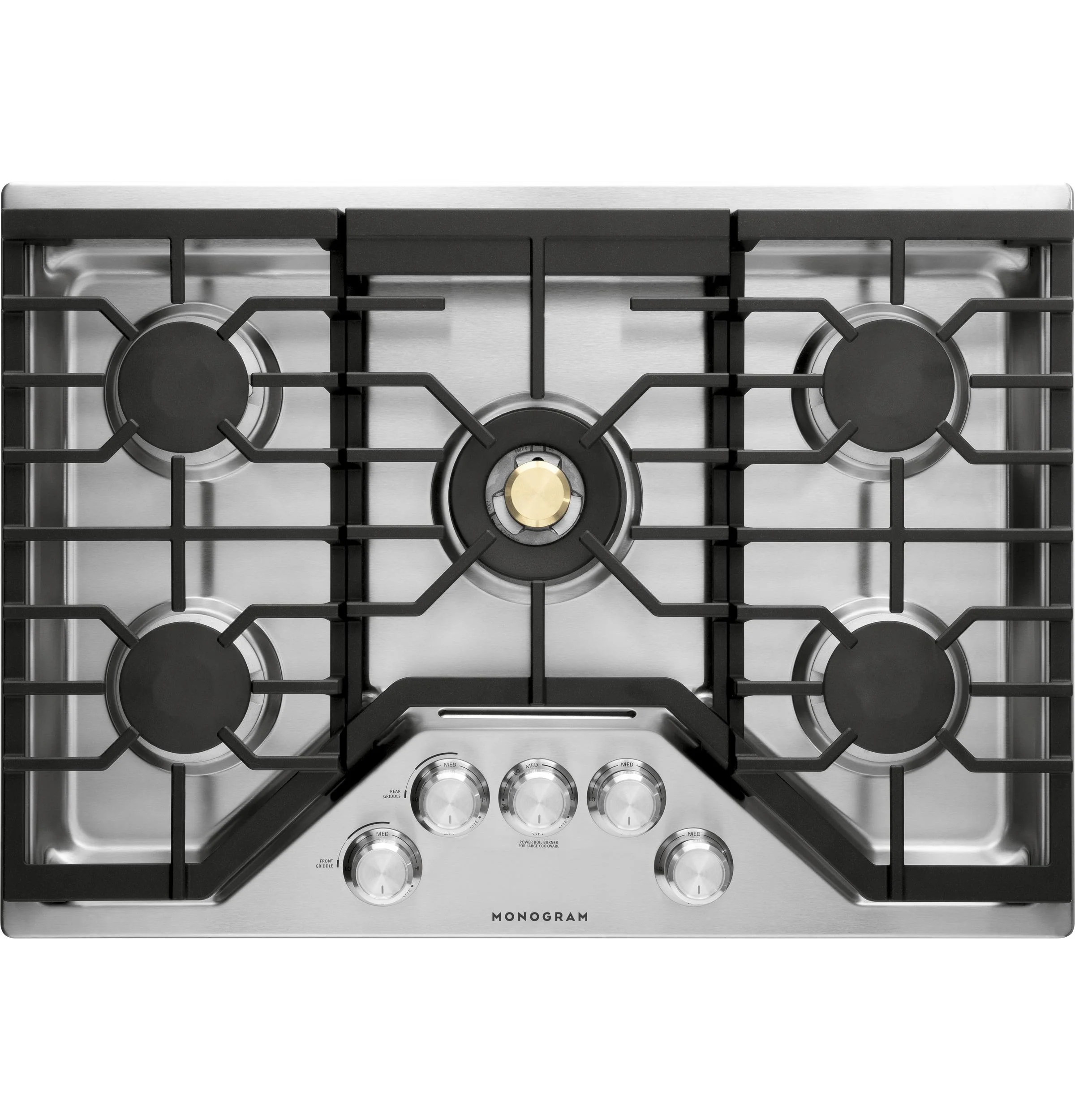

Monogram 30" Deep-Recessed Gas Cooktop
Gas Ranges Collection
Specifications
Specifications
Product
Warm Drawer
No
Warm Drawer
- No
Sabbath Mode
No
Sabbath Mode
- No
Wifi Enabled
No
Wifi Enabled
- No
Appliance Fuel Type
Gas
Appliance Fuel Type
- Gas
Self Clean
No
Self Clean
- No
Appliance Color
Stainless Steel
Appliance Color
- Stainless Steel
Convection
No
Convection
- No
Proof Mode
No
Proof Mode
- No
Hidden Bake Element
No
Hidden Bake Element
- No
ADA Compliant
No
ADA Compliant
- No
Cooktop Type
Gas
Cooktop Type
- Gas
Energy Star Compliant
No
Energy Star Compliant
- No
Dimensions
Height (bottom to top)
3.25" H
Height (bottom to top)
- 3.25" H
Width (side to side)
30.0" W
Width (side to side)
- 30.0" W
Depth (front to back)
21.0" D
Depth (front to back)
- 21.0" D
Storage
Has Storage Drawer
No
Has Storage Drawer
- No
Features & Function
Number of Burners
5
Number of Burners
- 5
Maximum Spin Speed (RPM)
-1.0
Maximum Spin Speed (RPM)
- -1.0
Style Elements
Color Family
Stainless Steel
Color Family
- Stainless Steel
Color Name
Stainless Steel
Color Name
- Stainless Steel
APPEARANCE
Color Appearance
Stainless Steel
Color Appearance
- Stainless Steel
Installation
Over Advantium Built-In 120V
Over Single Wall Oven (except Single-Double)
Over Warming Drawer
Installation
- Over Advantium Built-In 120V Over Single Wall Oven (except Single-Double) Over Warming Drawer
Control Knobs
Precision Knobs with Embedded Sapphire Glass
Control Knobs
- Precision Knobs with Embedded Sapphire Glass
WARRANTY
Parts Warranty
Limited 2-year entire appliance
Parts Warranty
- Limited 2-year entire appliance
Warranty Notes
See written warranty for full details
Warranty Notes
- See written warranty for full details
Labor Warranty
Limited 2-year entire appliance
Labor Warranty
- Limited 2-year entire appliance
POWER / RATINGS
Volts/Hertz/Amps
120V; 60Hz; 5.0A
Volts/Hertz/Amps
- 120V; 60Hz; 5.0A
ACCESSORIES
Conversion Kit
Included - Nat. Gas to LP
Conversion Kit
- Included - Nat. Gas to LP
Cooktop Cleaning
Included
Cooktop Cleaning
- Included
WEIGHTS & DIMENSIONS
Overall Height
3.25 in
Overall Height
- 3.25 in
Cutout Depth (in)
19-5/8
Cutout Depth (in)
- 19-5/8
Cabinet Width
30 in
Cabinet Width
- 30 in
Approximate Shipping Weight
50 lb
Approximate Shipping Weight
- 50 lb
Overall Width
30 in
Overall Width
- 30 in
Net Weight
44 lb
Net Weight
- 44 lb
Cutout Width (in)
28-1/2
Cutout Width (in)
- 28-1/2
Overall Depth
21 in
Overall Depth
- 21 in
FEATURES
Cooktop Burner Type
5 Sealed
Cooktop Burner Type
- 5 Sealed
Valves (Degree of Turn)
270
Valves (Degree of Turn)
- 270
Burner - Right Rear
10,000 BTU Dual
Burner - Right Rear
- 10,000 BTU Dual
Burner - Right Front
12,000 BTU Dual
Burner - Right Front
- 12,000 BTU Dual
Fuel Type
Natural Gas (factory set)
Fuel Type
- Natural Gas (factory set)
Control Location
Front Center
Control Location
- Front Center
Cooktop Type
Continuous Grates
Cooktop Type
- Continuous Grates
Ignition System
Direct Electronic Ignition
Ignition System
- Direct Electronic Ignition
Burner - Center
20,000 BTU Tri-ring (Brass Cap)
Burner - Center
- 20,000 BTU Tri-ring (Brass Cap)
Cooktop Surface
Stainless Steel
Cooktop Surface
- Stainless Steel
Burner - Left Rear
10,000 BTU Dual
Burner - Left Rear
- 10,000 BTU Dual
Extra Low Simmer
5
Extra Low Simmer
- 5
Burner Indicator Light
Yes - in Knob
Burner Indicator Light
- Yes - in Knob
Automatic Re-Ignition
Yes
Automatic Re-Ignition
- Yes
Cooktop Burner Grate Material
Cast-Iron; Porcelainized
Cooktop Burner Grate Material
- Cast-Iron; Porcelainized
Cooktop Burner Grate Features
Continuous Grates
Cooktop Burner Grate Features
- Continuous Grates
Griddle
JXGRIDL230 (Included)
Griddle
- JXGRIDL230 (Included)
140 Deg. Simmer Burner
5
140 Deg. Simmer Burner
- 5
Configuration
5 Sealed Cooktop Burners
Configuration
- 5 Sealed Cooktop Burners
Burner - Left Front
10,000 BTU Dual
Burner - Left Front
- 10,000 BTU Dual
Dual Flame Stacked Burners
5
Dual Flame Stacked Burners
- 5
Features
Tri-ring burner, Dual-flame stacked burners, High-output cooking, Continuous grates, Precision knobs, Electronic ignition, Heavy-duty, cast-iron griddle
- Tri-ring burner
- Dual-flame stacked burners
- High-output cooking
- Continuous grates
- Precision knobs
- Electronic ignition
- Heavy-duty, cast-iron griddle
Item & Dimensions
Manufacturer
Monogram
Manufacturer
- Monogram
The Gas Ranges Monogram 30" Deep-Recessed Gas Cooktop, made by Monogram,
