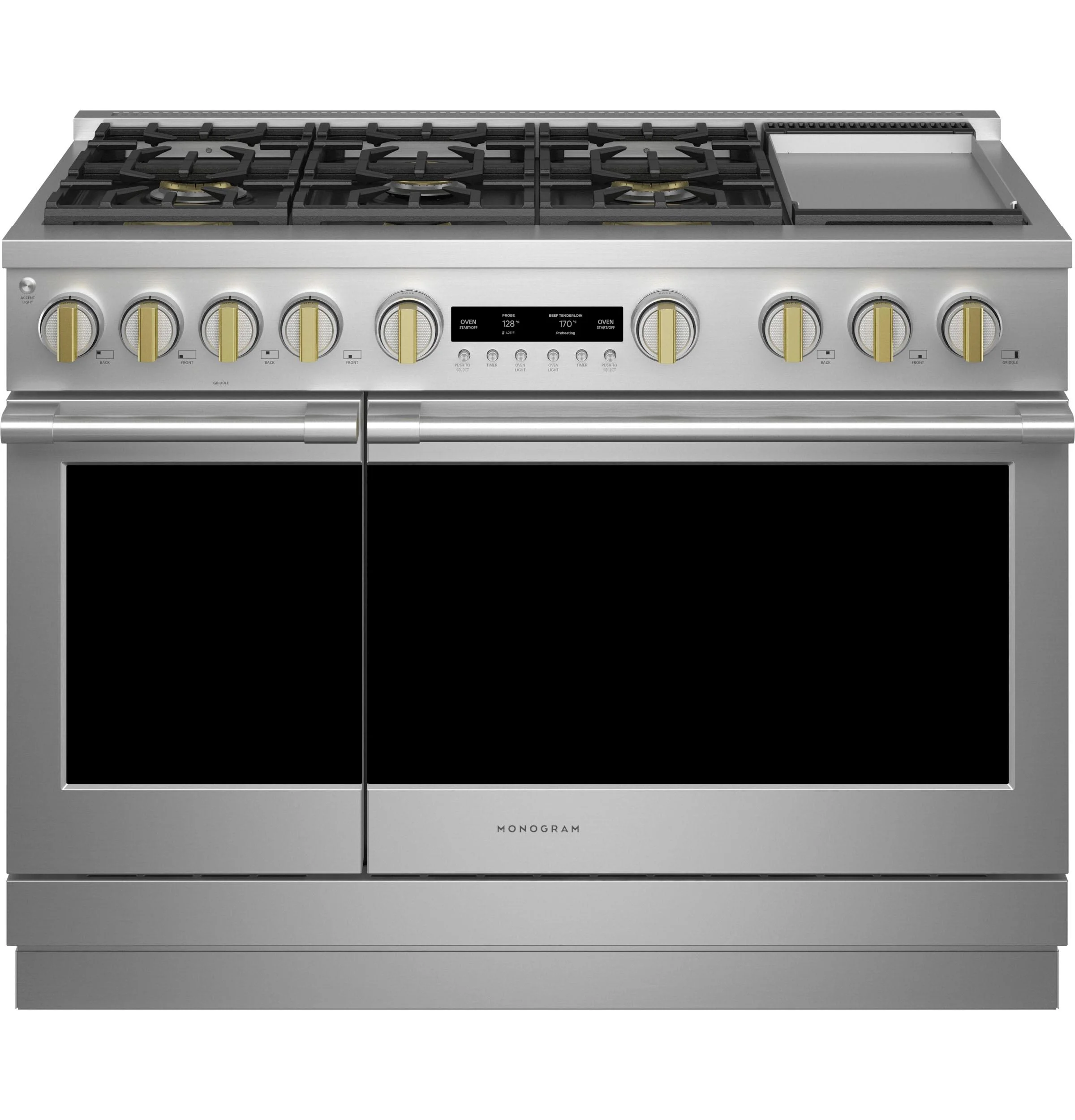

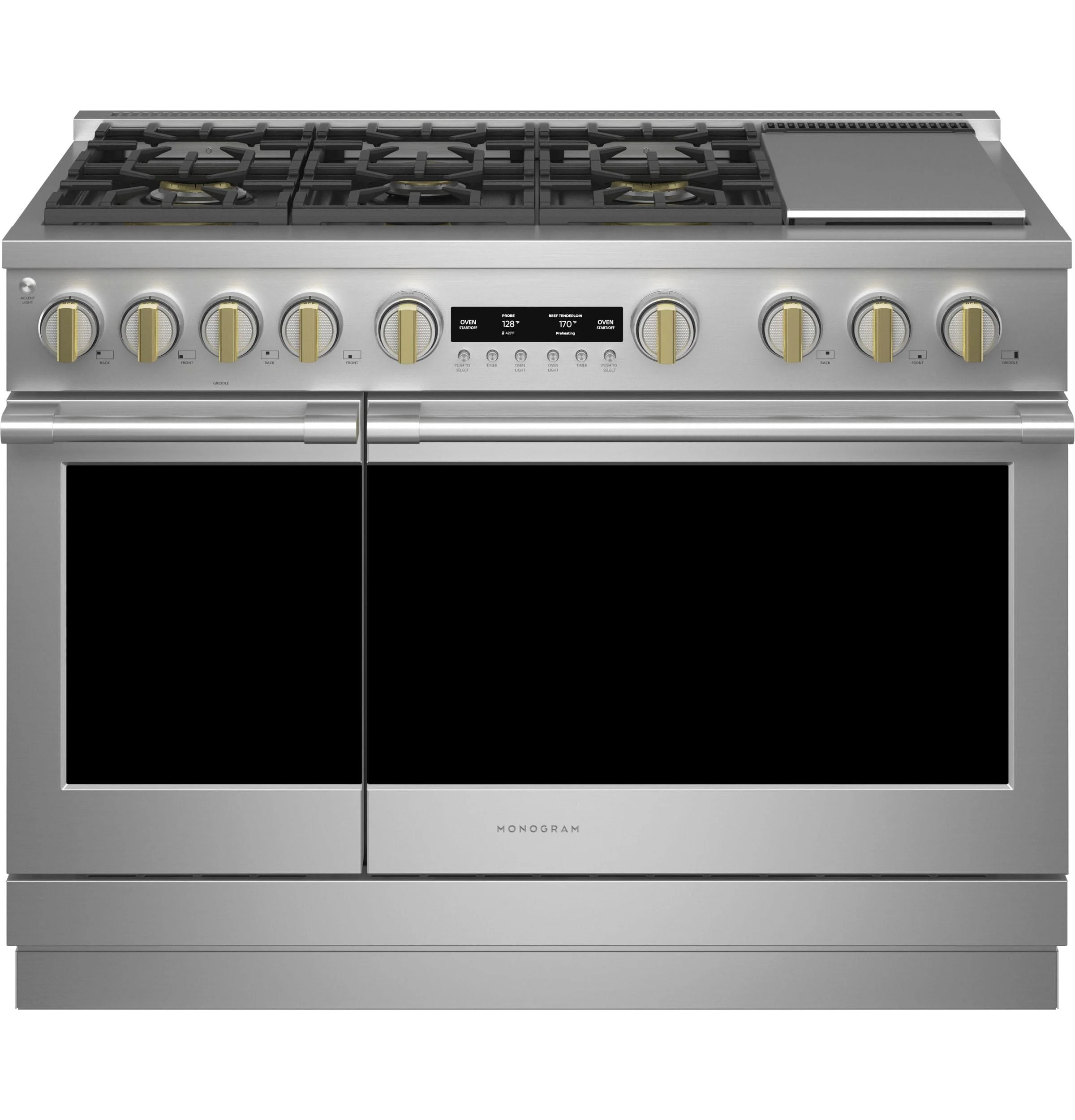

Monogram 48" Dual-Fuel Professional Range With 6 Burners And Griddle
SKU: ZDP486NDTSS
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
47.88" W
×
28.5" D
×
35.25" H
Width (side to side) | 47.88 |
Depth (front to back) | 28.5 |
Height (bottom to top) | 35.25 |
Oven Cubic Feet Capacity | 8.25 |
Disclaimer
Description
Versatile Gas Burner Configuration
Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

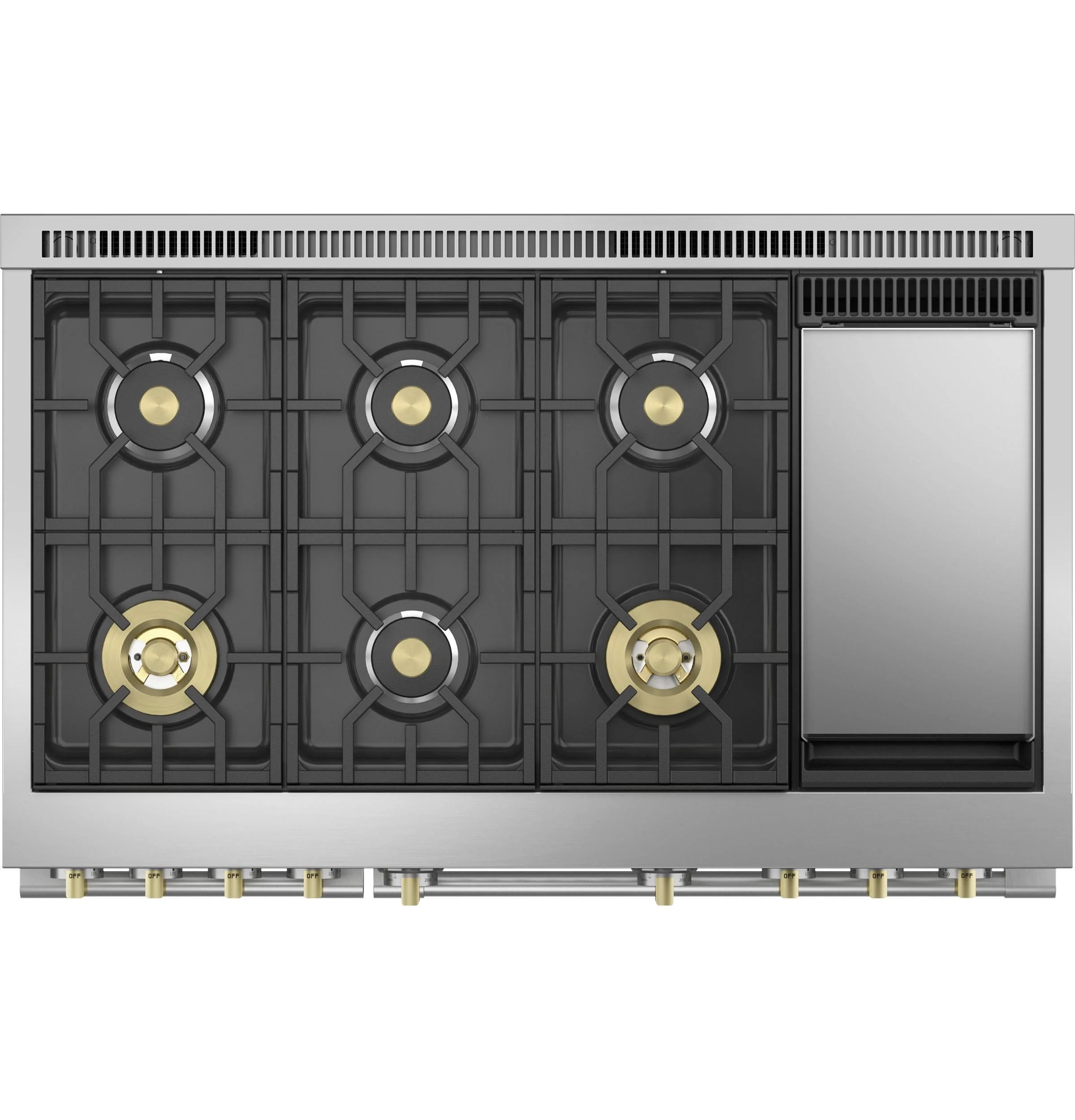

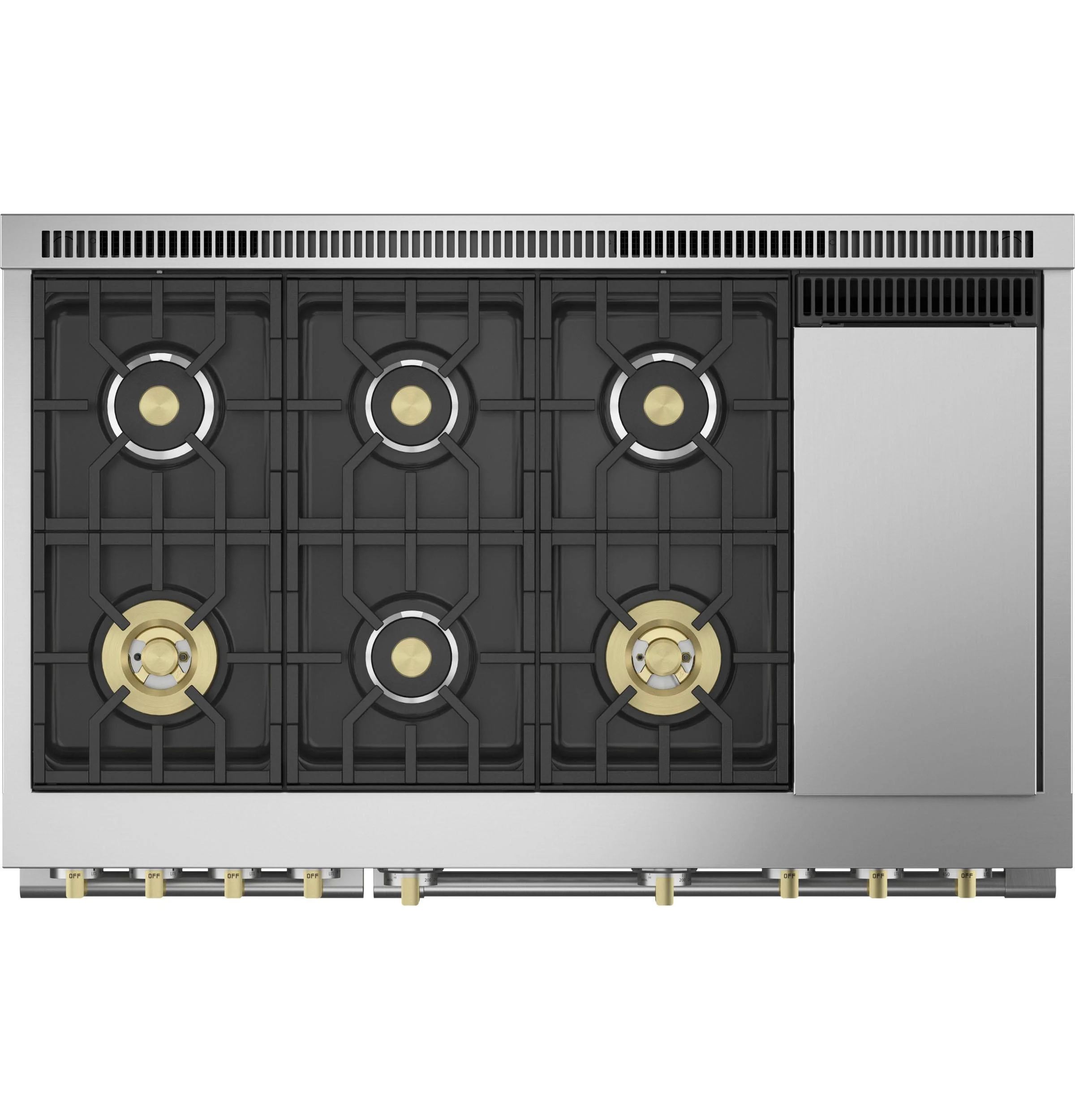

3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks
WiFi Monitoring and Remote Control with the SmartHQ™ app
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more
Dynamic Oven LCD
Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp
Solid Brass Burners
Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures
Chef Connect
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on
Industry Exclusive-Custom Color LED Accent Lighting
For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen décor or dining ambiance
Ring-Lit Knobs
Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven
Solid Brass Blades on Precision Machined Knobs
With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents
Seamless Stainless Top Frame
Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at
Soft-Close Hinges
Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement

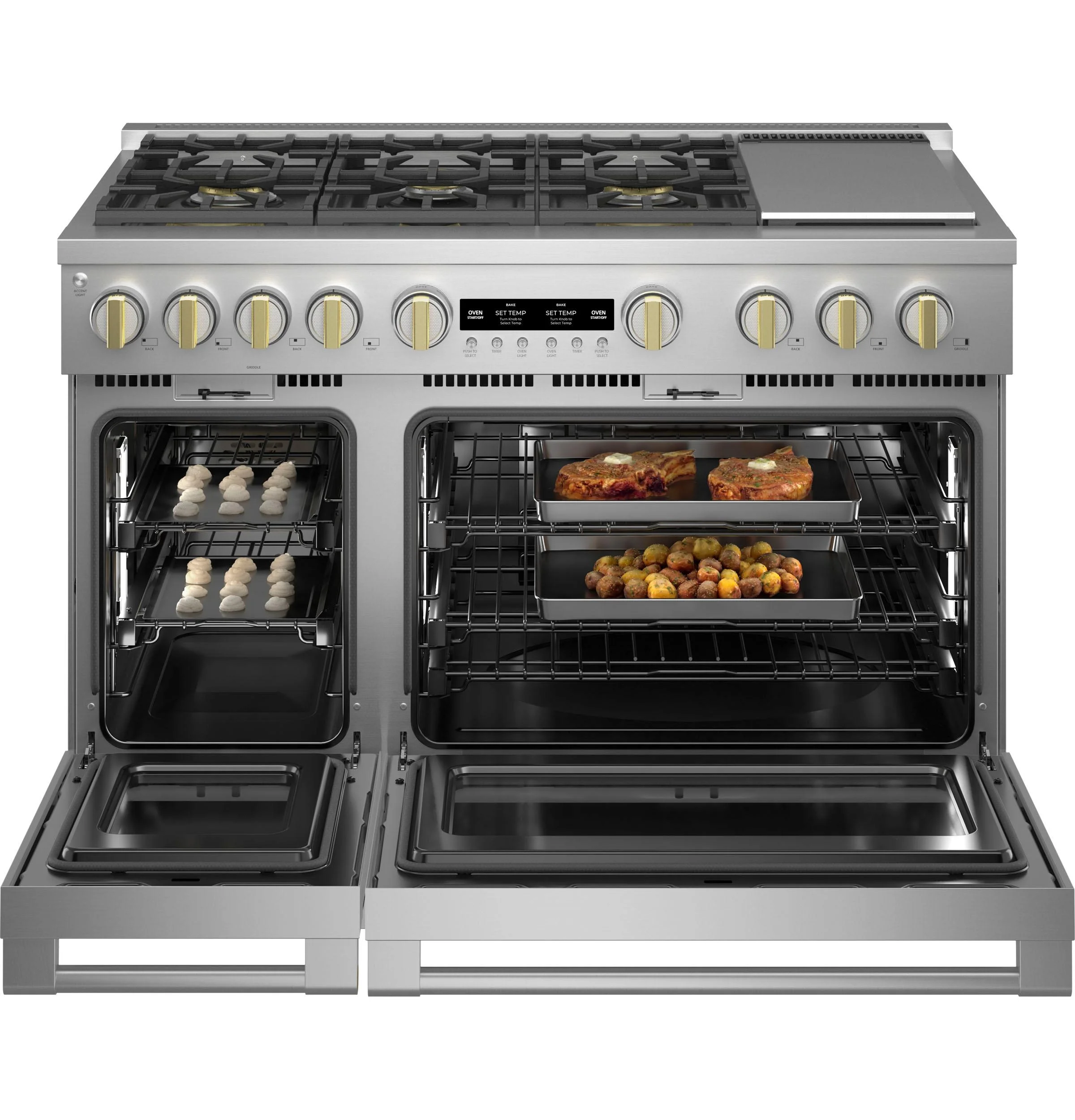

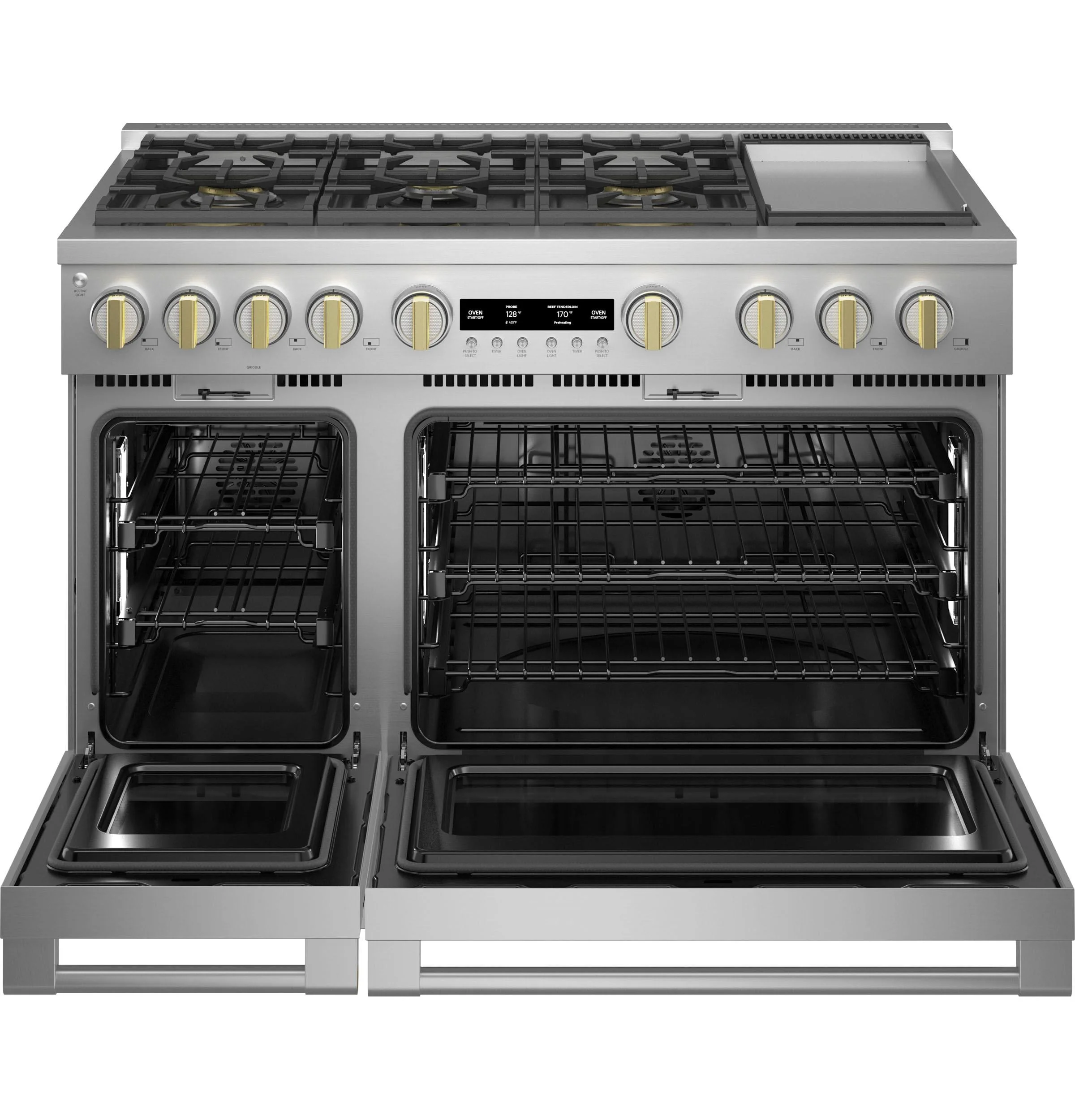

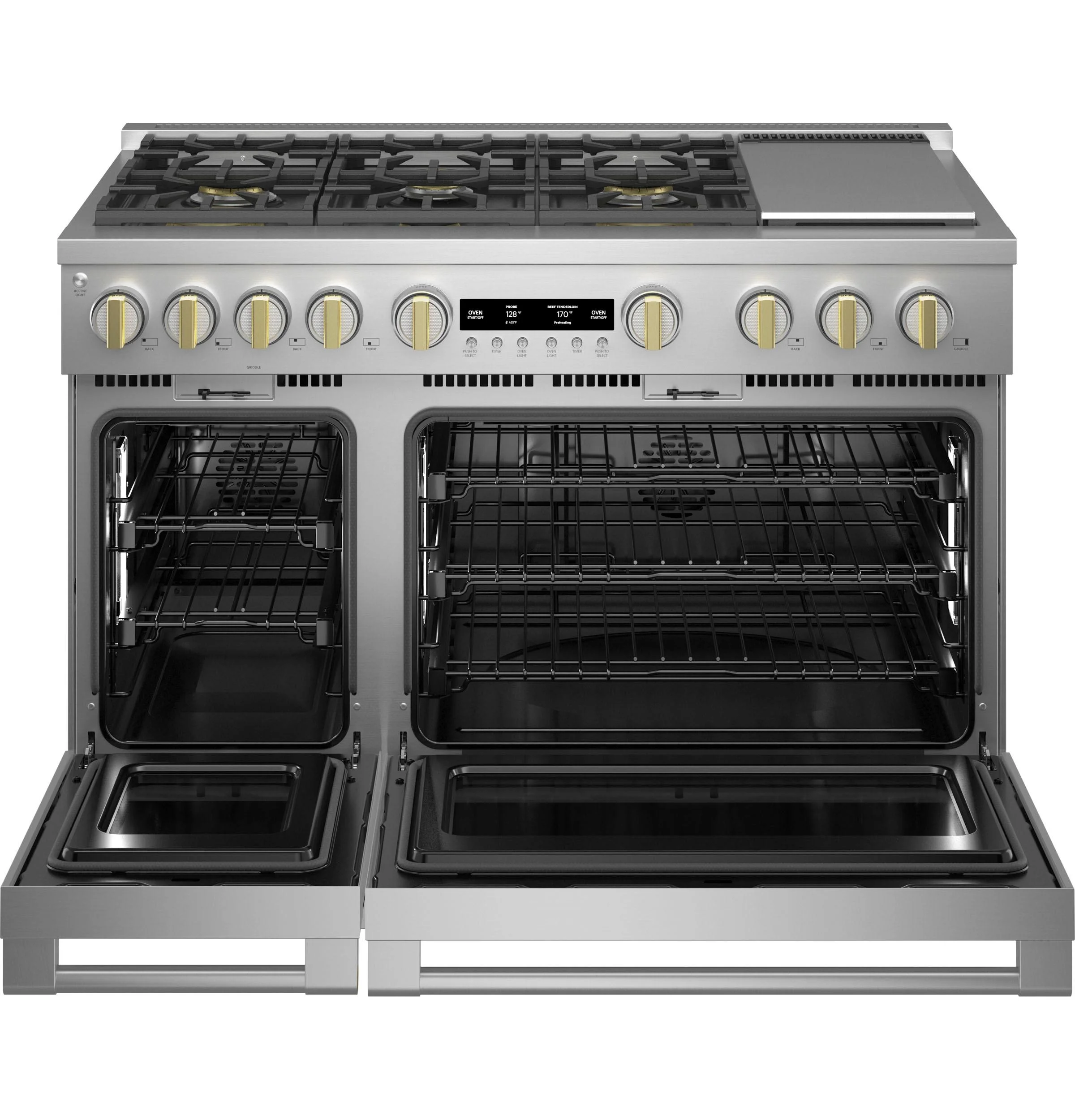

5 Oven Racks (Full-Extension)
Self-clean oven racks glide smoothly in and out on stainless steel ball bearings for easy access and are designed to remain in the oven during the self-clean cycle
Precision Oven Modes with SmartHQ™ app
Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments
Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame
3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks
WiFi Monitoring and Remote Control with the SmartHQ™ app
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more
Dynamic Oven LCD
Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp
Solid Brass Burners
Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures
Chef Connect
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on
Industry Exclusive-Custom Color LED Accent Lighting
For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen décor or dining ambiance
Ring-Lit Knobs
Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven
Solid Brass Blades on Precision Machined Knobs
With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents
Seamless Stainless Top Frame
Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at
Soft-Close Hinges
Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement
5 Oven Racks (Full-Extension)
Self-clean oven racks glide smoothly in and out on stainless steel ball bearings for easy access and are designed to remain in the oven during the self-clean cycle
Precision Oven Modes with SmartHQ™ app
Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments
- Dynamic Oven LCD
- Ring-Lit Knobs
- 3-Piece Grates with Reversible Wok Feature
- Solid Brass Blades on Precision Machined Knobs
- Seamless Stainless Top Frame
- WiFi Monitoring and Remote Control with the SmartHQ™ app
- Solid Brass Burners
- Versatile Gas Burner Configuration
- Chef Connect
- Industry Exclusive-Custom Color LED Accent Lighting
Rebates
view available rebates
Specifications
Specifications
Product
Warm Drawer
No
Warm Drawer
- No
Sabbath Mode
Yes
Sabbath Mode
- Yes
Wifi Enabled
Yes
Wifi Enabled
- Yes
Appliance Fuel Type
Dual Fuel
Appliance Fuel Type
- Dual Fuel
Oven Ignition Type
Electric
Oven Ignition Type
- Electric
Self Clean
Yes
Self Clean
- Yes
Appliance Color
Stainless Steel
Appliance Color
- Stainless Steel
Control Location
Above Door/Front of Range
Control Location
- Above Door/Front of Range
Convection
Yes
Convection
- Yes
Proof Mode
Yes
Proof Mode
- Yes
Hidden Bake Element
Yes
Hidden Bake Element
- Yes
ADA Compliant
No
ADA Compliant
- No
Cooktop Type
Gas
Cooktop Type
- Gas
Energy Star Compliant
No
Energy Star Compliant
- No
Dimensions
Height (bottom to top)
35.25" H
Height (bottom to top)
- 35.25" H
Width (side to side)
47.88" W
Width (side to side)
- 47.88" W
Depth (front to back)
28.5" D
Depth (front to back)
- 28.5" D
Oven Cubic Feet Capacity
8.25
Oven Cubic Feet Capacity
- 8.25
Features & Function
Range Features
Wi-Fi Enabled, ADA Compliant, Interior Lighting, Self Clean
Range Features
- Wi-Fi Enabled
- ADA Compliant
- Interior Lighting
- Self Clean
Number of Burners
6
Number of Burners
- 6
Types of Racks
Glide
Types of Racks
- Glide
Baking & Cooking Features
High Heat Burner, Air Fry, Proof Mode, Hidden Bake Element, Convection Bake, In-Oven Broil
Baking & Cooking Features
- High Heat Burner
- Air Fry
- Proof Mode
- Hidden Bake Element
- Convection Bake
- In-Oven Broil
Refrigerator Features
Sabbath Mode
Refrigerator Features
- Sabbath Mode
Maximum Spin Speed (RPM)
-1.0
Maximum Spin Speed (RPM)
- -1.0
Style Elements
Color Family
Stainless Steel
Color Family
- Stainless Steel
Color Name
Stainless Steel
Color Name
- Stainless Steel
Shipping
Item Weight
576lbs
Item Weight
- 576lbs
CAPACITY
Total Capacity (cubic feet)
8.25 cu ft
Total Capacity (cubic feet)
- 8.25 cu ft
Capacity (Cu. Ft.)
5.75 Caterer Oven / 2.5 Everyday Oven
Capacity (Cu. Ft.)
- 5.75 Caterer Oven / 2.5 Everyday Oven
APPEARANCE
Toe kick
Included
Toe kick
- Included
Oven Door Features
Soft Close Door
Oven Door Features
- Soft Close Door
Design Style
Statement Collection
Design Style
- Statement Collection
Control Knobs
Diecast Metallic (Included)
Stainless Steel with Brass Accents
Control Knobs
- Diecast Metallic (Included) Stainless Steel with Brass Accents
Color Appearance
Stainless Steel
Color Appearance
- Stainless Steel
POWER / RATINGS
Top Burner BTU Rating - Nat. Gas (000's BTU's)
(2) 23.0; (2) 18.0; (2) 15.0
Top Burner BTU Rating - Nat. Gas (000's BTU's)
- (2) 23.0; (2) 18.0; (2) 15.0
Electrical Requirements
240VAC; 50A
Electrical Requirements
- 240VAC; 50A
Top Burner BTU Rating - LP (000's BTU's)
(2) 21.0; (2) 15.0; (2) 10.0
Top Burner BTU Rating - LP (000's BTU's)
- (2) 21.0; (2) 15.0; (2) 10.0
Convection Wattage
2500W (Main Oven); 1500W (Companion Oven)
Convection Wattage
- 2500W (Main Oven); 1500W (Companion Oven)
Bake/Broil Wattage - Main Oven
2700/4000W
Bake/Broil Wattage - Main Oven
- 2700/4000W
Griddle BTU Rating (000's/BTU) - LP Gas
16.0
Griddle BTU Rating (000's/BTU) - LP Gas
- 16.0
Griddle BTU Rating (000's/BTU) - Natural Gas
18.0
Griddle BTU Rating (000's/BTU) - Natural Gas
- 18.0
Bake/Broil Wattage - Companion Oven
1600/2750W
Bake/Broil Wattage - Companion Oven
- 1600/2750W
WARRANTY
Parts Warranty
Limited 2-year entire appliance
Limited 5-year gas surface burners
Limited lifetime of oven racks
Parts Warranty
- Limited 2-year entire appliance Limited 5-year gas surface burners Limited lifetime of oven racks
Labor Warranty
Limited 2-year entire appliance
Labor Warranty
- Limited 2-year entire appliance
Warranty Notes
See written warranty for full details
Warranty Notes
- See written warranty for full details
ACCESSORIES
Air Fry Basket
Optional- JXAFTRAY1VSS
Air Fry Basket
- Optional- JXAFTRAY1VSS
48" Monogram Knob Kit
ZXPR48KKTSS (SS, qty. 11)
48" Monogram Knob Kit
- ZXPR48KKTSS (SS, qty. 11)
Optional Backguard
12" stainless steel backsplash (UX12BS48PSS)
30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB48PSS)
Optional Backguard
- 12" stainless steel backsplash (UX12BS48PSS) 30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB48PSS)
High Altitude Kit
Natural Gas: WB28X39726; LP: WB28X39727
High Altitude Kit
- Natural Gas: WB28X39726; LP: WB28X39727
Reversible Griddle/Grill Accessory
UXPRRGG
Reversible Griddle/Grill Accessory
- UXPRRGG
Multi Ring Burner Caps (Brass)
Included
Multi Ring Burner Caps (Brass)
- Included
LP Conversion Kit
Included
LP Conversion Kit
- Included
Multi Ring Burner Caps (Black)
Included
Multi Ring Burner Caps (Black)
- Included
WEIGHTS & DIMENSIONS
Net Weight
576 lb
Net Weight
- 576 lb
Height to Cooking Surface (in.)
35 1/4 to 36 3/4
Height to Cooking Surface (in.)
- 35 1/4 to 36 3/4
Cabinet Width
48 in
Cabinet Width
- 48 in
Approximate Shipping Weight
672 lb
Approximate Shipping Weight
- 672 lb
Overall Width
47.875 in
Overall Width
- 47.875 in
Overall Height
35.25 in
Overall Height
- 35.25 in
Overall Depth
28.5 in
Overall Depth
- 28.5 in
Height w/Legs Extended - Maximum Height
36.75 in
Height w/Legs Extended - Maximum Height
- 36.75 in
Height With Legs Retracted
35.25 in
Height With Legs Retracted
- 35.25 in
FEATURES
Cooking System
Reverse Air Convection
True European Convection
Cooking System
- Reverse Air Convection True European Convection
Cleaning Time
3-5 Hours (Both Ovens)
Cleaning Time
- 3-5 Hours (Both Ovens)
Ignition System
Electronic w/Auto Reignition
Ignition System
- Electronic w/Auto Reignition
Oven Control Features
12-Hour Shut-Off Capability
Audible Preheat Signal
Auto Recipe Conversion
Automatic Oven Meat Probe (Both Ovens)
Certified Sabbath Mode (* additional purchase required)
Chef Connect
Cook Time
C° or F° Programmable
Delay Clean Option (Both Ovens)
Probe Mode
Proof Mode (Both Ovens)
Remote Enabled
Self & Steam Clean Modes
Timer
WiFi Connect
Oven Control Features
- 12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Automatic Oven Meat Probe (Both Ovens) Certified Sabbath Mode (* additional purchase required) Chef Connect Cook Time C° or F° Programmable Delay Clean Option (Both Ovens) Probe Mode Proof Mode (Both Ovens) Remote Enabled Self & Steam Clean Modes Timer WiFi Connect
Oven Rack Features
3 Self-Clean Oven Racks (Caterer Oven), 2 Self-Clean Oven Racks (Everyday Oven)
4 Rack Positions (Everyday Oven)
5 Rack Positions (Caterer Oven)
Full-Extension
Oven Rack Features
- 3 Self-Clean Oven Racks (Caterer Oven), 2 Self-Clean Oven Racks (Everyday Oven) 4 Rack Positions (Everyday Oven) 5 Rack Positions (Caterer Oven) Full-Extension
Convection Roasting Rack
Yes
Convection Roasting Rack
- Yes
Broiler Pan and Grid
2
Broiler Pan and Grid
- 2
Oven Cleaning Type
Self-Clean (Both Ovens)
Steam Clean (Both Ovens)
Oven Cleaning Type
- Self-Clean (Both Ovens) Steam Clean (Both Ovens)
Griddle
18,000-BTU
Stainless Steel and Aluminum Clad
Thermostatically Controlled
Griddle
- 18,000-BTU Stainless Steel and Aluminum Clad Thermostatically Controlled
Connected Capabilities
Bluetooth
Innit
Connected Capabilities
- Bluetooth Innit
140 Deg. Simmer Burner
All Burners - Adjustable
140 Deg. Simmer Burner
- All Burners - Adjustable
Cooktop Type
6 Burners
Griddle
Cooktop Type
- 6 Burners Griddle
Fuel Type
Dual Fuel (with natural gas)
Fuel Type
- Dual Fuel (with natural gas)
Indicator Lights
Burner "On"
Indicator Lights
- Burner "On"
Short Description
48" Pro Range - Dual Fuel with 6 Burners and Griddle
Short Description
- 48" Pro Range - Dual Fuel with 6 Burners and Griddle
Interior Oven Light
3 Halogen Lamps (Everyday Oven)
6 Halogen Lamps (Caterer Oven)
Interior Oven Light
- 3 Halogen Lamps (Everyday Oven) 6 Halogen Lamps (Caterer Oven)
WiFi Connect
Built-In
WiFi Connect
- Built-In
Extra Low Simmer
All Burners - Adjustable
Extra Low Simmer
- All Burners - Adjustable
Cooktop Burner Grate Features
Continuous Grates
Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
Cooktop Burner Grate Features
- Continuous Grates Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
Control Type
Digital Temperature LCD Display (Both Ovens) with Timer Display
Control Type
- Digital Temperature LCD Display (Both Ovens) with Timer Display
Lighting
LED Bullnose Task Lighting
Lighting
- LED Bullnose Task Lighting
Cooking Technology
Convection
Cooking Technology
- Convection
Oven Features
4-Pass Bake Element (Everyday Oven)
4-Pass Broil Element (Everyday Oven)
8-Pass Bake Element
8-Pass Broil Element
Hidden Bake
Oven Features
- 4-Pass Bake Element (Everyday Oven) 4-Pass Broil Element (Everyday Oven) 8-Pass Bake Element 8-Pass Broil Element Hidden Bake
Oven Cooking Modes
Convection Bake Multi-Rack (Both Ovens)
Convection Broil Hi/Lo (Both Ovens)
Convection Crisp
Convection Roast (Both Ovens)
No-Preheat Air Frying (Both Ovens)
Precision Cooking Modes
Proof (Both Ovens)
Scan-to-Cook
Warming (Both Ovens)
Oven Cooking Modes
- Convection Bake Multi-Rack (Both Ovens) Convection Broil Hi/Lo (Both Ovens) Convection Crisp Convection Roast (Both Ovens) No-Preheat Air Frying (Both Ovens) Precision Cooking Modes Proof (Both Ovens) Scan-to-Cook Warming (Both Ovens)
Cooktop Burner Type
2 Sealed, Dual Flame Stacked (Removable Brass Accents)
4 Sealed, Dual Flame Stacked
Cooktop Burner Type
- 2 Sealed, Dual Flame Stacked (Removable Brass Accents) 4 Sealed, Dual Flame Stacked
Removable Grease Trough
(1) Beneath Griddle
Removable Grease Trough
- (1) Beneath Griddle
Cooktop Surface
Porcelain-Enamel
Cooktop Surface
- Porcelain-Enamel
Stainless Steel Grill / Griddle Covers
1
Stainless Steel Grill / Griddle Covers
- 1
Oven Rack Positions (Single or Upper/Lower)
5 / 4
Oven Rack Positions (Single or Upper/Lower)
- 5 / 4
Self-Clean Oven Door Lock
Automatic
Self-Clean Oven Door Lock
- Automatic
Features
Dynamic Oven LCD, Ring-Lit Knobs, 3-Piece Grates with Reversible Wok Feature, Solid Brass Blades on Precision Machined Knobs, Seamless Stainless Top Frame, WiFi Monitoring and Remote Control with the SmartHQ™ app, Solid Brass Burners, Versatile Gas Burner Configuration, Chef Connect, Industry Exclusive-Custom Color LED Accent Lighting
- Dynamic Oven LCD
- Ring-Lit Knobs
- 3-Piece Grates with Reversible Wok Feature
- Solid Brass Blades on Precision Machined Knobs
- Seamless Stainless Top Frame
- WiFi Monitoring and Remote Control with the SmartHQ™ app
- Solid Brass Burners
- Versatile Gas Burner Configuration
- Chef Connect
- Industry Exclusive-Custom Color LED Accent Lighting
Item & Dimensions
Manufacturer
Monogram
Manufacturer
- Monogram
The Gas Ranges Monogram 48" Dual-Fuel Professional Range With 6 Burners And Griddle, made by Monogram,
is brought to you by Sherman's. Sherman's is a local furniture store, serving the Peoria, Normal, and Peru, IL area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Gas Ranges collection is an amazing option if you are looking for
Appliances.
Our store serves the Peoria, Normal, and Peru, IL area.
Similar search terms: Range, Ranges, Kitchen Appliances, Appliances, Stove, Kitchen Stove, Cook Top Stove, Cooker, Cookstove, Cook Stove, Rangetops, Range Top, Oven, Double Oven, Single Oven, Gas Oven, Electric Oven, Built in Oven, Combination Oven, Oven Range, Oven with Ranges, Oven with Stove Top, Convection Oven, Oven with Microwave, Stove Oven, Kitchen Range, Roaster, Stove, Electric Range, Gas Range, Slide In range, Free Standing Range
Reference #: ZDP486NDTSS
