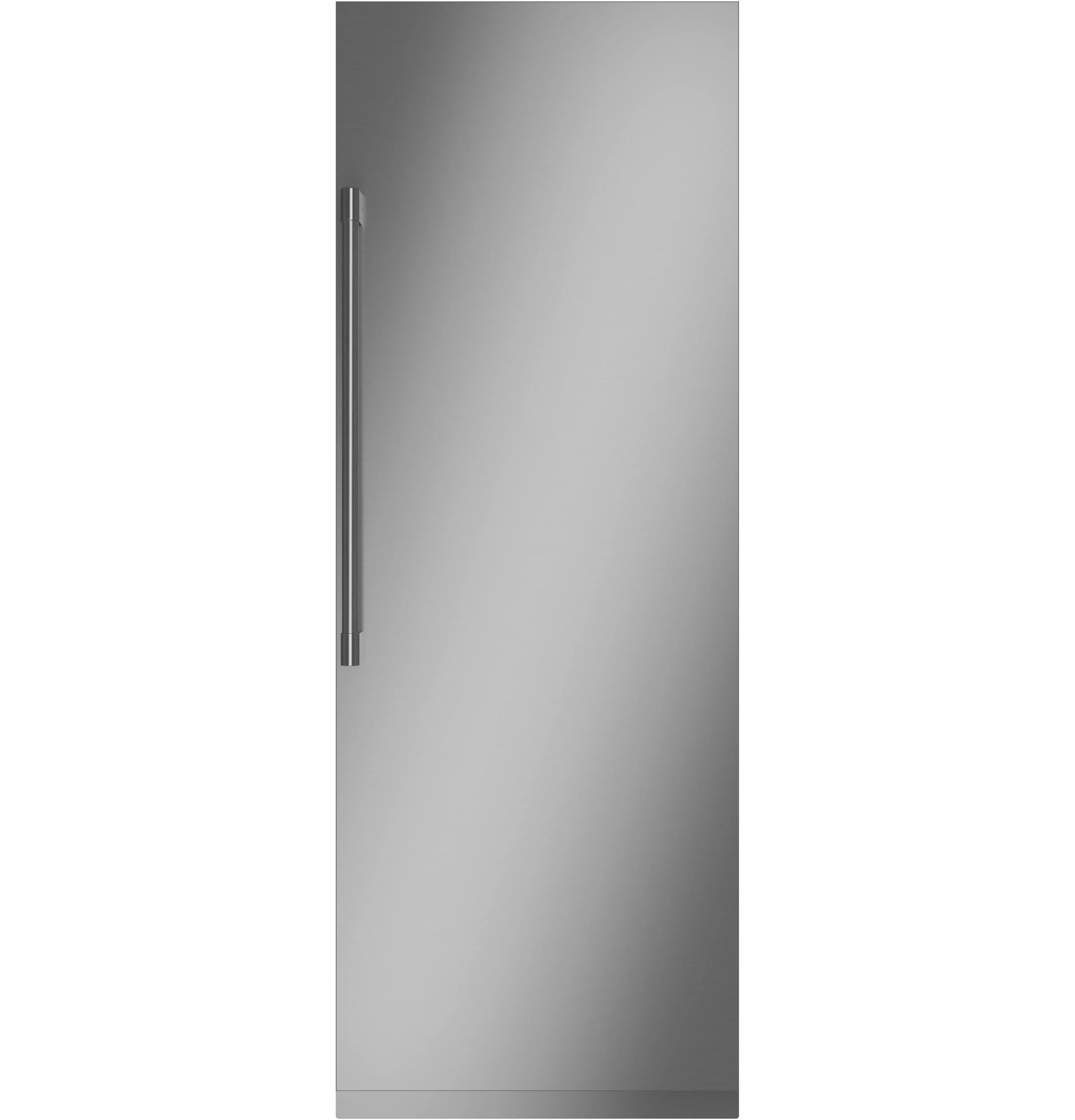

Monogram 30" Panel-Ready Premium Integrated Column Refrigerator
SKU: ZIR301NPNII
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
29.5" W
×
24.75" D
×
83.25" H
| Width (side to side) | 29.5 |
| Depth (front to back) | 24.75 |
| Height (bottom to top) | 83.25 |
| Refrigerator Capacity Ranges | 14-22 cu.ft. |
| Installation Depth | Standard Depth |
Disclaimer
Description

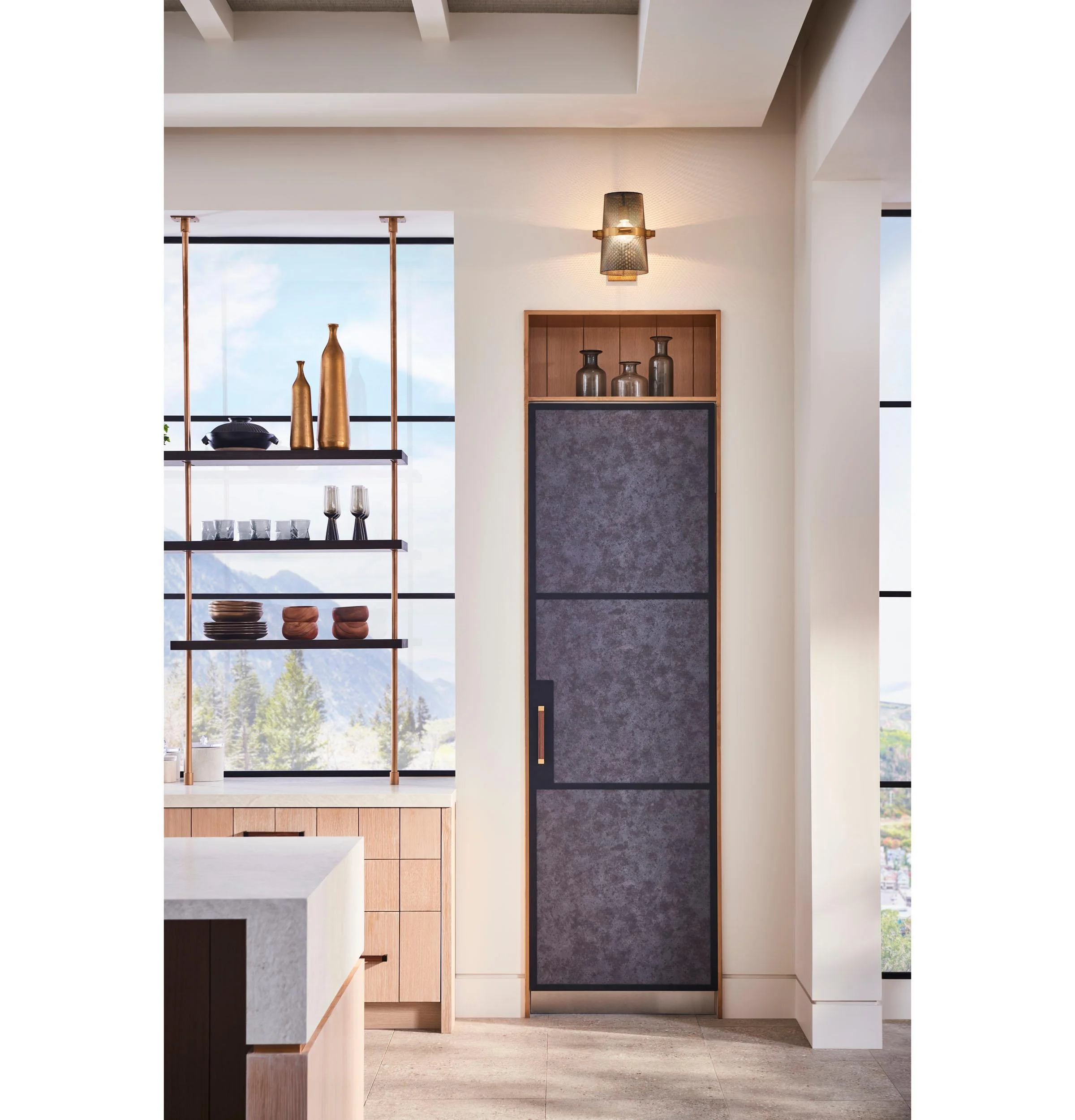

Fully integrated column design
With concealed hinge offers a look of seamless perfection that installs flush with surrounding cabinetry
Statement and Minimalist Collection Refrigerator Handles (sold separately)
Designed to enhance choice and customization, Statement and Minimalist Collection refrigerators do not come with handles. Handles must be chosen separately and ordered through a Monogram representative

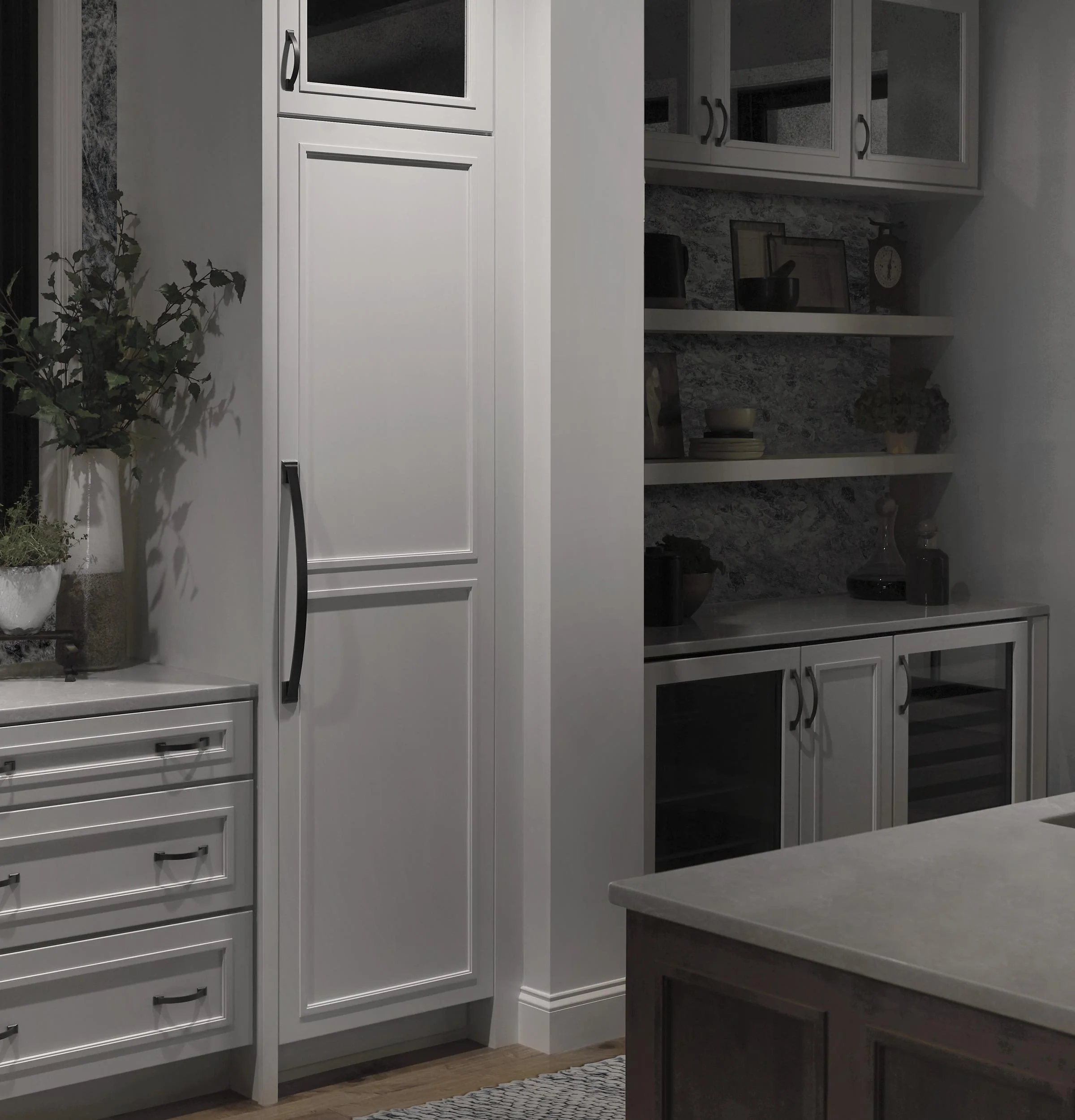

Panel-ready exterior with six-way adjustability
Accepts Statement or Minimalist Collection stainless steel panels ordered separately from Monogram or custom panel & handle from your cabinet maker
Retrofit capability
Allows you to replace a 48" built-in side-by-side refrigerator with two column refrigerators with no cabinet or electrical modifications
Ramp-up LED interior lighting
Throughout the freezer compartment accentuates the sophisticated interior and allows easy viewing of contents
Autofill pitcher
Automatically refills when placed on its dock inside the refrigerator, so you'll have a pitcher of chilled, filtered water ready anytime
Remote connectivity via WiFi
Allows you to wirelessly control refrigerator settings from your smartphone, using an available app

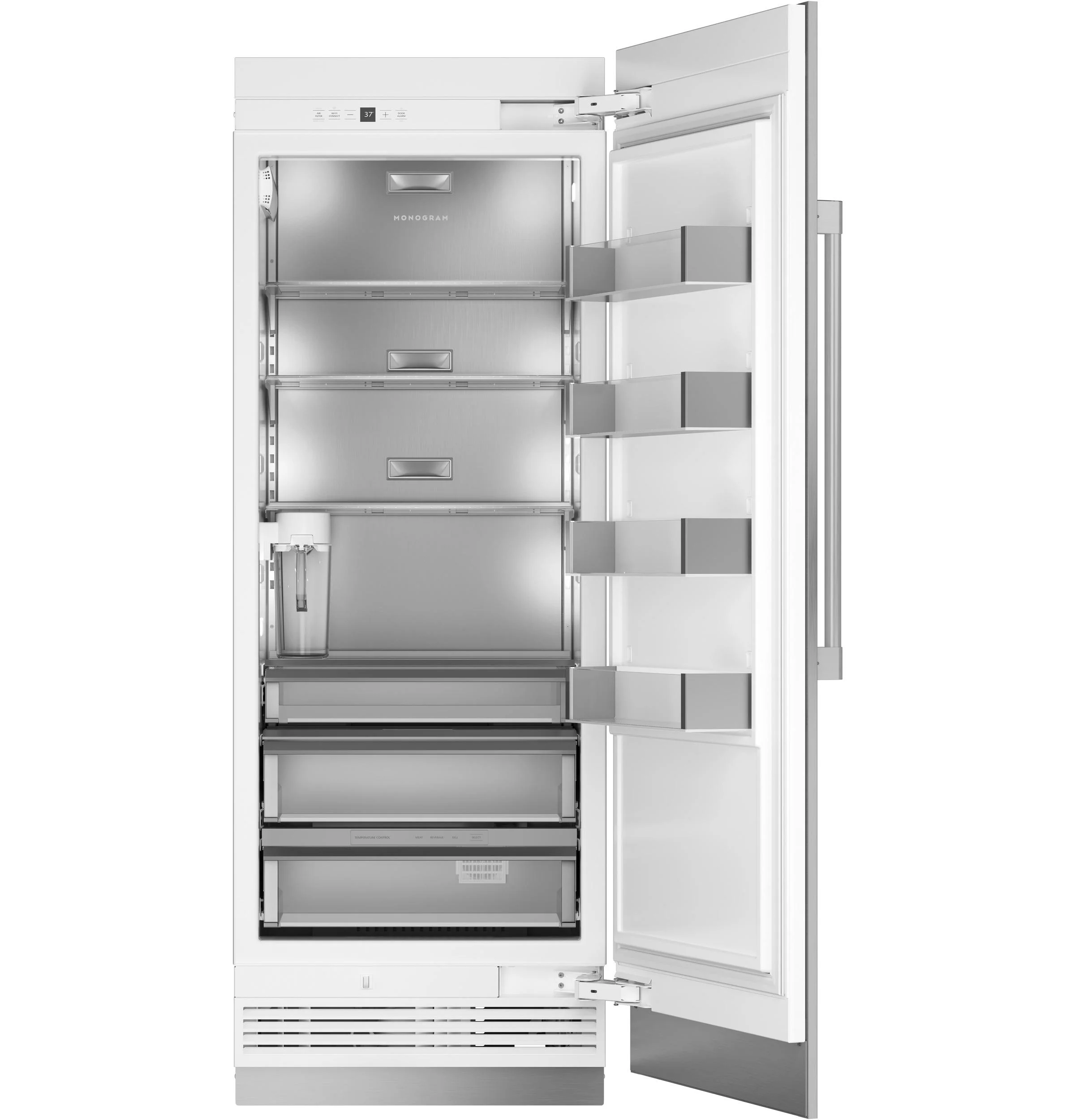

Adjustable glass shelves with integrated LED lighting
Provide convenient storage and a clean appearance
Finely crafted, adjustable aluminum door bins with clear fronts
Offer easy access to beverages and quick-grab items
Upfront, electronic-touch controls
Make it easy to adjust climate settings to create ideal food storage conditions
Temperature-controlled drawer
Offers added storage flexibility with pre-programmed settings for meat, beverage, and deli
Soft-close drawers
Use an innovative sliding mechanism to help the drawers close gently and completely
Humidity-controlled vegetable drawer
Helps preserve the freshness of foods
Dedicated evaporator sealed system
Helps maintain a precise temperature throughout the freezer compartment
Water filtration system
Supplies you with clean, fresh-tasting water
With concealed hinge offers a look of seamless perfection that installs flush with surrounding cabinetry
Statement and Minimalist Collection Refrigerator Handles (sold separately)
Designed to enhance choice and customization, Statement and Minimalist Collection refrigerators do not come with handles. Handles must be chosen separately and ordered through a Monogram representative
Panel-ready exterior with six-way adjustability
Accepts Statement or Minimalist Collection stainless steel panels ordered separately from Monogram or custom panel & handle from your cabinet maker
Retrofit capability
Allows you to replace a 48" built-in side-by-side refrigerator with two column refrigerators with no cabinet or electrical modifications
Ramp-up LED interior lighting
Throughout the freezer compartment accentuates the sophisticated interior and allows easy viewing of contents
Autofill pitcher
Automatically refills when placed on its dock inside the refrigerator, so you'll have a pitcher of chilled, filtered water ready anytime
Remote connectivity via WiFi
Allows you to wirelessly control refrigerator settings from your smartphone, using an available app
Adjustable glass shelves with integrated LED lighting
Provide convenient storage and a clean appearance
Finely crafted, adjustable aluminum door bins with clear fronts
Offer easy access to beverages and quick-grab items
Upfront, electronic-touch controls
Make it easy to adjust climate settings to create ideal food storage conditions
Temperature-controlled drawer
Offers added storage flexibility with pre-programmed settings for meat, beverage, and deli
Soft-close drawers
Use an innovative sliding mechanism to help the drawers close gently and completely
Humidity-controlled vegetable drawer
Helps preserve the freshness of foods
Dedicated evaporator sealed system
Helps maintain a precise temperature throughout the freezer compartment
Water filtration system
Supplies you with clean, fresh-tasting water
- Retrofit capability
- Adjustable glass shelves with integrated LED lighting
- Statement and Minimalist Collection Refrigerator Handles (sold separately)
- Finely crafted, adjustable aluminum door bins with clear fronts
- Upfront, electronic-touch controls
- Panel-ready exterior with six-way adjustability
- Ramp-up LED interior lighting
- Fully integrated column design
- Autofill pitcher
- Remote connectivity via WiFi
Rebates
view available rebates
Monogram 30" Panel-Ready Premium Integrated Column Refrigerator
Refrigerators Collection
Specifications
Specifications
Product
Sabbath Mode
Yes
Sabbath Mode
- Yes
Wifi Enabled
Yes
Wifi Enabled
- Yes
Refrigerator Type
No Freezer
Refrigerator Type
- No Freezer
Refrigerator Total Capacity
17.3
Refrigerator Total Capacity
- 17.3
Install Type
Built-In
Install Type
- Built-In
Refrigerator Capacity Cubic Feet
17.6
Refrigerator Capacity Cubic Feet
- 17.6
ADA Compliant
No
ADA Compliant
- No
Energy Star Compliant
Yes
Energy Star Compliant
- Yes
Dimensions
Height (bottom to top)
83.25" H
Height (bottom to top)
- 83.25" H
Width (side to side)
29.5" W
Width (side to side)
- 29.5" W
Depth (front to back)
24.75" D
Depth (front to back)
- 24.75" D
Installation Depth
Standard Depth
Installation Depth
- Standard Depth
Refrigerator Capacity Ranges
14-22 cu.ft.
Refrigerator Capacity Ranges
- 14-22 cu.ft.
Storage
Storage Description
full-extension soft-close deli drawer, full-extension soft-close produce drawer with humidity slider, temperature control drawer, four adjustable glass and metal door bin, one fixed and three adjustable light up LED cabinet shelves
Storage Description
- full-extension soft-close deli drawer, full-extension soft-close produce drawer with humidity slider, temperature control drawer, four adjustable glass and metal door bin, one fixed and three adjustable light up LED cabinet shelves
Number of Doors
1
Number of Doors
- 1
Number of Shelves
4
Number of Shelves
- 4
Number of Drawers
3
Number of Drawers
- 3
Number of Door Bins
4
Number of Door Bins
- 4
Features & Function
Appliance Storage Features
Adjustable Door Bins, Deli/Dairy Drawer, Adjustable Shelves, Crisper Drawer
Appliance Storage Features
- Adjustable Door Bins
- Deli/Dairy Drawer
- Adjustable Shelves
- Crisper Drawer
Defrost Type
Auto/Cycle
Defrost Type
- Auto/Cycle
Water Dispenser Location
Interior
Water Dispenser Location
- Interior
Refrigerator Features
Door Alarm, Interior Lighting, Reversible Doors, Water Filter, Energy Star Compliant, Wi-Fi Enabled, Sabbath Mode, Water Dispenser, Temperature Control, Smart Capabilities
Refrigerator Features
- Door Alarm
- Interior Lighting
- Reversible Doors
- Water Filter
- Energy Star Compliant
- Wi-Fi Enabled
- Sabbath Mode
- Water Dispenser
- Temperature Control
- Smart Capabilities
Maximum Spin Speed (RPM)
-1.0
Maximum Spin Speed (RPM)
- -1.0
Style Elements
Color Name
Custom Panel Ready
Color Name
- Custom Panel Ready
Construction & Materials
Shelf Composition
Glass
Shelf Composition
- Glass
Shipping
Item Weight
495lbs
Item Weight
- 495lbs
CAPACITY
Fresh Food Capacity
17.58 cu ft
Fresh Food Capacity
- 17.58 cu ft
Total Capacity (cubic feet)
17.6 cu ft
Total Capacity (cubic feet)
- 17.6 cu ft
FILTER
App Filter - WiFi Connect
Built-In
App Filter - WiFi Connect
- Built-In
APPEARANCE
Panel Capability
Fully Integrated
Panel Capability
- Fully Integrated
Handle
Separate Purchase Required
Handle
- Separate Purchase Required
Door Swing
Reversible Door
Door Swing
- Reversible Door
Handle Purchased Separately
Requires Statement Handle Kit (ZKSP1H1PNSS) or Minimalist Handle Kit (ZKSP1H1CNSS)
Handle Purchased Separately
- Requires Statement Handle Kit (ZKSP1H1PNSS) or Minimalist Handle Kit (ZKSP1H1CNSS)
Color Appearance
Custom Panel and Handle Required
Color Appearance
- Custom Panel and Handle Required
Door Stops
90 Degree and 115 Degree
Door Stops
- 90 Degree and 115 Degree
Design Style
Custom Panel
Design Style
- Custom Panel
WARRANTY
Labor Warranty
Limited 2-year entire appliance
Limited 5-year sealed refrigerating system
Labor Warranty
- Limited 2-year entire appliance Limited 5-year sealed refrigerating system
Warranty Notes
See written warranty for full details
Warranty Notes
- See written warranty for full details
Parts Warranty
Limited 12-year sealed refrigerating system parts
Limited 2-year entire appliance
Parts Warranty
- Limited 12-year sealed refrigerating system parts Limited 2-year entire appliance
POWER / RATINGS
Volts/Hertz/Amps
115V; 60Hz; 20A
Volts/Hertz/Amps
- 115V; 60Hz; 20A
ACCESSORIES
Optional Accessories
ZKR48N 48" Dual Retro Kit
ZKUN Heater Unification Kit
Optional Accessories
- ZKR48N 48" Dual Retro Kit ZKUN Heater Unification Kit
WEIGHTS & DIMENSIONS
Overall Width
29.5 in
Overall Width
- 29.5 in
Approximate Shipping Weight
520 lb
Approximate Shipping Weight
- 520 lb
Overall Depth
24.75 in
Overall Depth
- 24.75 in
Height to Top of Hinge
83.25 in
Height to Top of Hinge
- 83.25 in
Net Weight
495 lb
Net Weight
- 495 lb
Overall Height
83.25 in
Overall Height
- 83.25 in
FEATURES
Fresh Food Features
Autofill Pitcher
Fresh Food Features
- Autofill Pitcher
Climate Control Drawer
Temp Control (Meat, Bev, Deli) with Rubber Matt Inserts
Climate Control Drawer
- Temp Control (Meat, Bev, Deli) with Rubber Matt Inserts
Deli Drawer
Full-Extension Soft-Close with Rubber Matt Inserts
Deli Drawer
- Full-Extension Soft-Close with Rubber Matt Inserts
Control Type
Upfront Capacitance Touch Controls w/ Digital LCD Readout
Control Type
- Upfront Capacitance Touch Controls w/ Digital LCD Readout
Produce Drawer
Full-Extension, Soft-Close w/ Humidity Slider with Rubber Matt Inserts
Produce Drawer
- Full-Extension, Soft-Close w/ Humidity Slider with Rubber Matt Inserts
Integrated Wi-Fi Connectivity & Control
Air Filter Status
Change Temp Setpoint
Display Temp Setpoint
Door Alarm Alert
Night Time Snack Mode
Sabbath Status (On/Off)
Water Filter Status
Integrated Wi-Fi Connectivity & Control
- Air Filter Status Change Temp Setpoint Display Temp Setpoint Door Alarm Alert Night Time Snack Mode Sabbath Status (On/Off) Water Filter Status
Custom Panel Ready
30" SS Door Panel Kit, Left-Hinge ZK1SN309NLH
30" SS Door Panel Kit, Right-Hinge ZK1SN304NRH
Integrated Panels
Custom Panel Ready
- 30" SS Door Panel Kit, Left-Hinge ZK1SN309NLH 30" SS Door Panel Kit, Right-Hinge ZK1SN304NRH Integrated Panels
Refrigerant Type
R600a
Refrigerant Type
- R600a
WiFi Connect
Built-In
WiFi Connect
- Built-In
Fresh Food Cabinet Shelves
1 Fixed
3 Adjustable
Light Up LED
Fresh Food Cabinet Shelves
- 1 Fixed 3 Adjustable Light Up LED
Interior Lighting
Ramp Up LED
Interior Lighting
- Ramp Up LED
Sabbath Mode
Optional
Sabbath Mode
- Optional
Filter Location
Top right of product behind access panel
Filter Location
- Top right of product behind access panel
Sealed System Design
Auto Defrost
Sealed System Design
- Auto Defrost
Short Description
30" Integrated Column Refrigerator
Short Description
- 30" Integrated Column Refrigerator
Defrost Type
Automatic Defrost
Defrost Type
- Automatic Defrost
Water Filtration
GE Water Filtration 6 Month
XWF or XWFE
Water Filtration
- GE Water Filtration 6 Month XWF or XWFE
Leveling System
4 Point Front Adjustable
Leveling System
- 4 Point Front Adjustable
Fresh Food Door Bins
4 Bins with Rubber Matt Inserts
Adjustable Glass and Metal Bins
Fresh Food Door Bins
- 4 Bins with Rubber Matt Inserts Adjustable Glass and Metal Bins
Product Type
All-Refrigerator
Integrated Column Refrigerator
Product Type
- All-Refrigerator Integrated Column Refrigerator
Air Filtration System
GE Air Filtration 6 Month
Air Filtration System
- GE Air Filtration 6 Month
OU Certified
OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
OU Certified
- OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
Features
Retrofit capability, Adjustable glass shelves with integrated LED lighting, Statement and Minimalist Collection Refrigerator Handles (sold separately), Finely crafted, adjustable aluminum door bins with clear fronts, Upfront, electronic-touch controls, Panel-ready exterior with six-way adjustability, Ramp-up LED interior lighting, Fully integrated column design, Autofill pitcher, Remote connectivity via WiFi
- Retrofit capability
- Adjustable glass shelves with integrated LED lighting
- Statement and Minimalist Collection Refrigerator Handles (sold separately)
- Finely crafted, adjustable aluminum door bins with clear fronts
- Upfront, electronic-touch controls
- Panel-ready exterior with six-way adjustability
- Ramp-up LED interior lighting
- Fully integrated column design
- Autofill pitcher
- Remote connectivity via WiFi
Item & Dimensions
Manufacturer
Monogram
Manufacturer
- Monogram
The Refrigerators Monogram 30" Panel-Ready Premium Integrated Column Refrigerator, made by Monogram,
is brought to you by Sherman's. Sherman's is a local furniture store, serving the Peoria, Normal, and Peru, IL area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Refrigerators collection is an amazing option if you are looking for
Appliances.
Our store serves the Peoria, Normal, and Peru, IL area.
Similar search terms: Refrigerator, Refrigerator with Bottom Freezer, Built-In Refrigerator, Side by Side Refrigerators, Built In Side x Side, Compact Refrigerator, Fridge, Refrigerator without a Freezer, Under the Counter Refrigerator, Fridge, Refridgerators, Appliances, Kitchen Appliances, Icebox, Iceboxes, Residential Refrigerators, Cold Storage
Reference #: ZIR301NPNII
Your cart looks happy!
Monogram
Refrigerators
No Freezer Built In Refrigerator
$0
You Might Also Need
